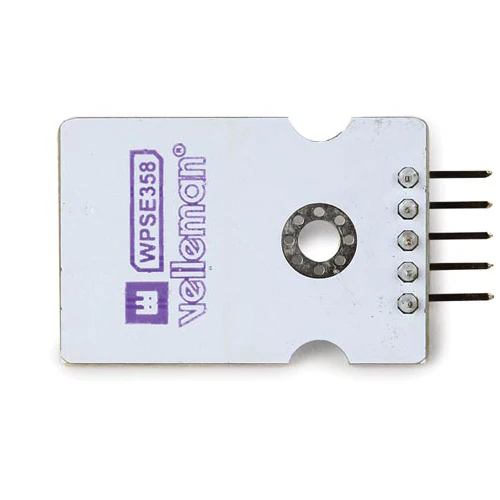

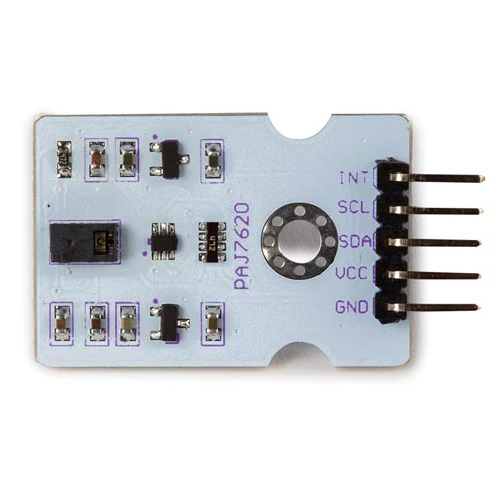

Gesture Recognition Sensor

This sensor is able to detect 9 distinct gestures like up, down, forward, backward, rotating, to use as an input for your project. Check out all gesture possibilities in the features below.

The module has a normal and game mode that can read your gestures at a different speed. The detection distance is 10 cm and the ambient light immunity is <100k lux. This module has a 12C interface that is easy to interface with microcontroller boards.

Features

• sensor is able to detect 9 distinct gestures:
• up
• down
• left
• right
• forwards
• backwards
• rotating clockwise
• rotating anti-clockwise
• waving
• I2C interface to easily interface with microcontroller boards

Specifications

• supply voltage: 5 V DC
• working current: 50 mA
• max. power: 0,5 W
• detection distance: max. 10 cm
• gesture speed: 60 °/s - 600 °/s (in normal mode), 60 °/s - 1200 °/s (in game mode)
• ambient light immunity: < 100k lux
• I²C communication speed: max. 400 kbit/s
• working temperature range: -25 - +65 °C
• interface connector: standard 5-pin pin header
• dimensions (W x L x H): 35,5 x 20,1 x 7 mm

Documentation

• Manual
• CE document
