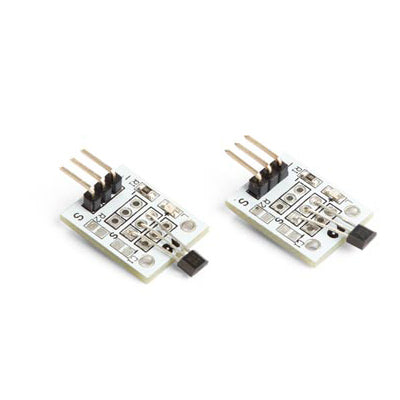

-70%Hall (Holzer) Magnetic Switch Module (2 Pcs)β
$6.67
$2.00The Story
The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier that amplifies the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, and an open-collector output.
Features
- on-chip Hall voltage generator for magnetic sensing
- on-board amplifier
- on-board Schmitt trigger
- open collector output
Specifications
- voltage: 5 VDC
- connection: 3 pins, +(middle pin), ground and S (data out)
- output (S): Schmitt Trigger, Active Low
- activation: 30 Gauss
- deactivation: 10 Gauss
- LED indicator: ON when activated
- dimensions: 25 x 15 mm
- weight: 2 g
- User manual
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier that amplifies the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, and an open-collector output.
Features
- on-chip Hall voltage generator for magnetic sensing
- on-board amplifier
- on-board Schmitt trigger
- open collector output
Specifications
- voltage: 5 VDC
- connection: 3 pins, +(middle pin), ground and S (data out)
- output (S): Schmitt Trigger, Active Low
- activation: 30 Gauss
- deactivation: 10 Gauss
- LED indicator: ON when activated
- dimensions: 25 x 15 mm
- weight: 2 g
- User manual
