$12.01

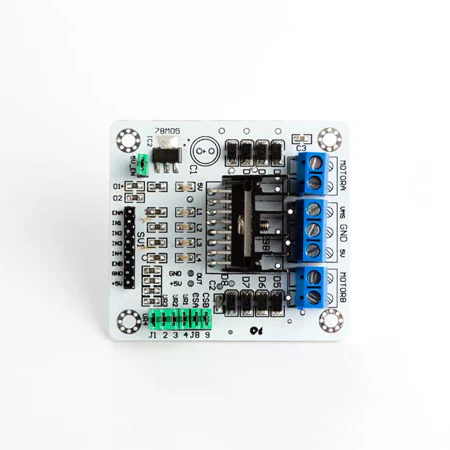

L298N Dual Bridge DC and Stepper Motor Controller Board—
$12.01
The Story
This module allows full control of two DC motors or one stepper motor.
Specifications
- driver: L298N
- driver power supply: + 5 V to + 35 V
- driver output current (max.): 2A
- logic power output Vss: +5 V to +7 V (internal supply +5 V)
- logic current: 0-36 mA
- controlling level: low -0.3 V to 1.5 V, high: 2.3 V-Vss
- enable signal level: low -0.3 V to 1.5 V, high: 2.3 V-Vss
- max. power: 25 W
- working temperature: -25 to +130 °C ( -13 to 266 °F )
- dimensions: 69 x 56 x 36 mm ( 2.71 x 2.2 x 1.41" )
Manual
Info Sheets
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This module allows full control of two DC motors or one stepper motor.
Specifications
- driver: L298N
- driver power supply: + 5 V to + 35 V
- driver output current (max.): 2A
- logic power output Vss: +5 V to +7 V (internal supply +5 V)
- logic current: 0-36 mA
- controlling level: low -0.3 V to 1.5 V, high: 2.3 V-Vss
- enable signal level: low -0.3 V to 1.5 V, high: 2.3 V-Vss
- max. power: 25 W
- working temperature: -25 to +130 °C ( -13 to 266 °F )
- dimensions: 69 x 56 x 36 mm ( 2.71 x 2.2 x 1.41" )
