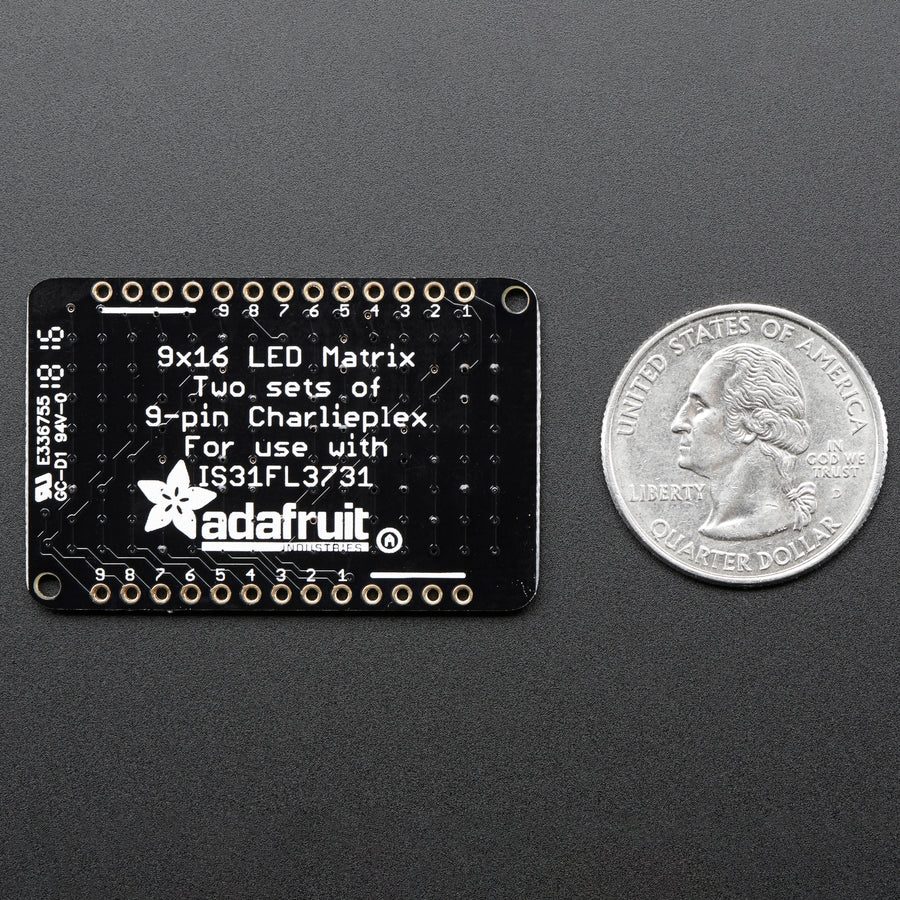

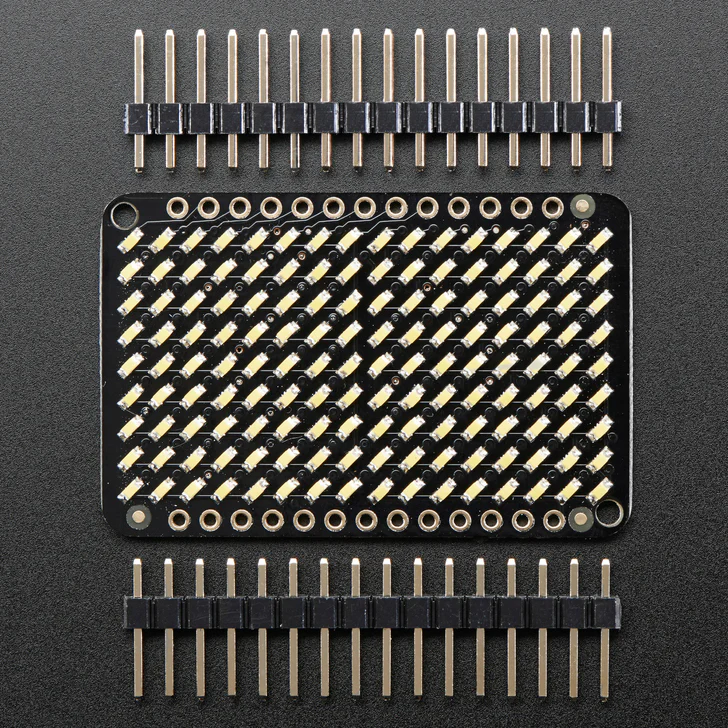

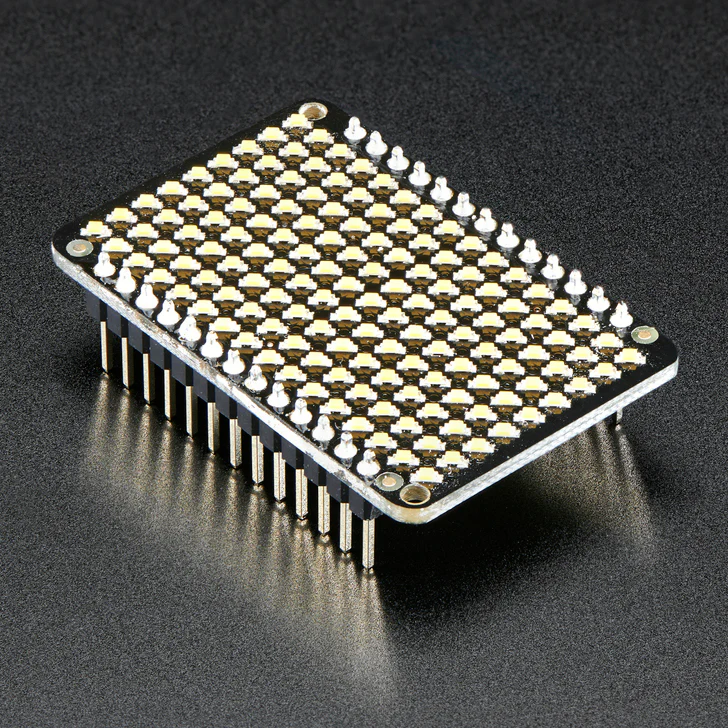

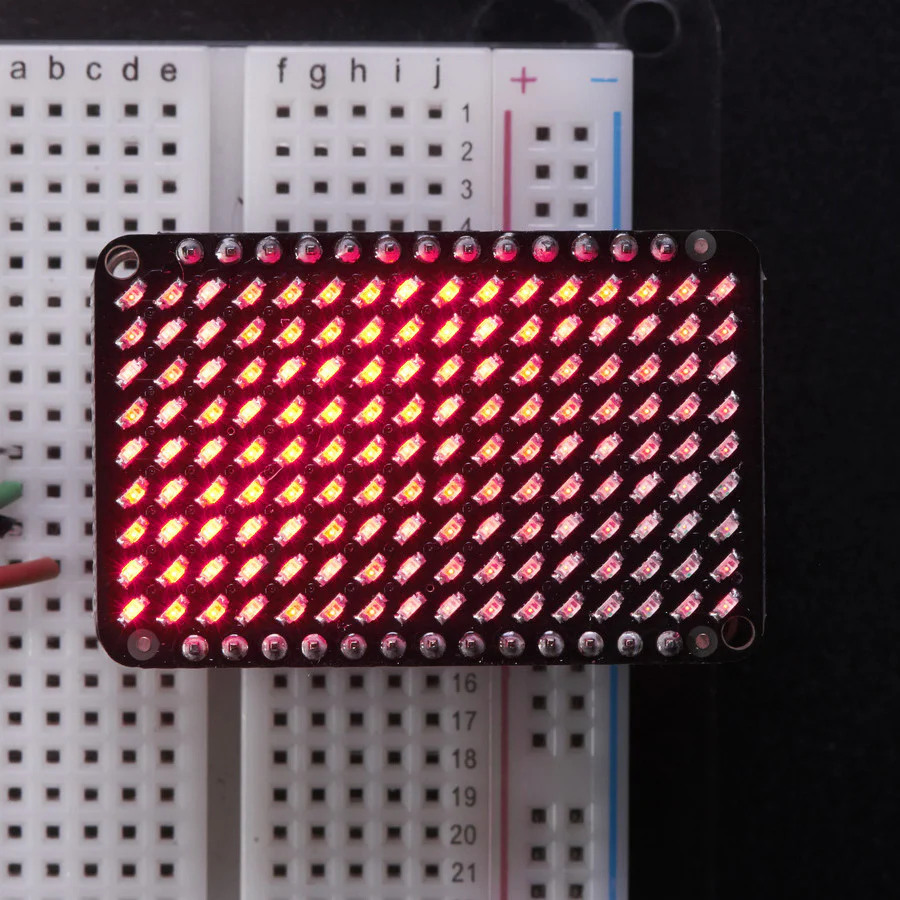

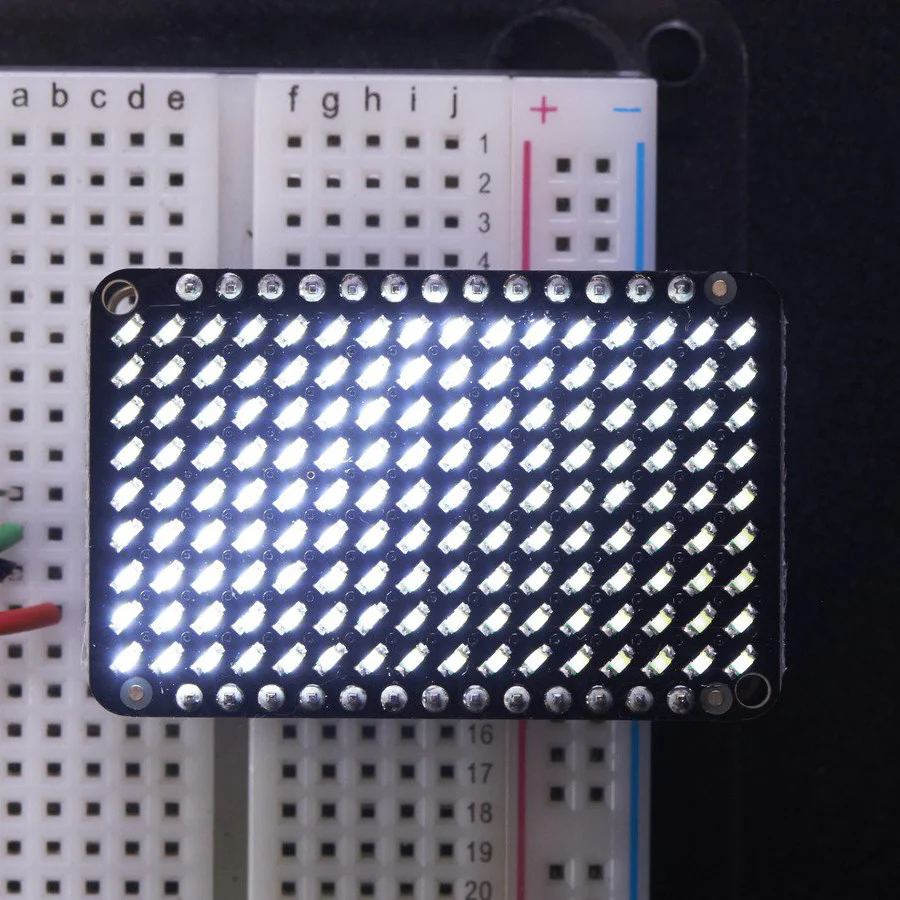

Adafruit LED Charlieplexed Matrix - 9x16 LEDs

These are 9x16 Charlieplexed LEDs designed to match with the Adafruit 16x9 Charlieplexed PWM LED Matrix Driver - IS31FL3731.

You don't get any resistors or driver chips with this grid, its just a mess of LEDs in a charlieplexed arrangement

Check out the detailed tutorial for Arduino & CircuitPython support, pinouts, assembly, wiring, and more!

Technical Details

• Datasheets, EagleCAD PCB files, Fritzing objects and more in the tutorial

Product Dimensions: 43.3mm x 28.1mm x 2.4mm / 1.7" x 1.1" x 0.1"

Product Weight: 5.7g / 0.2oz
