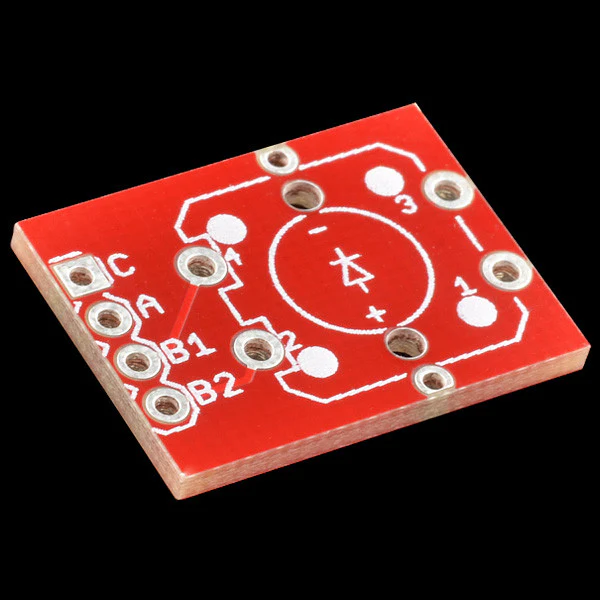

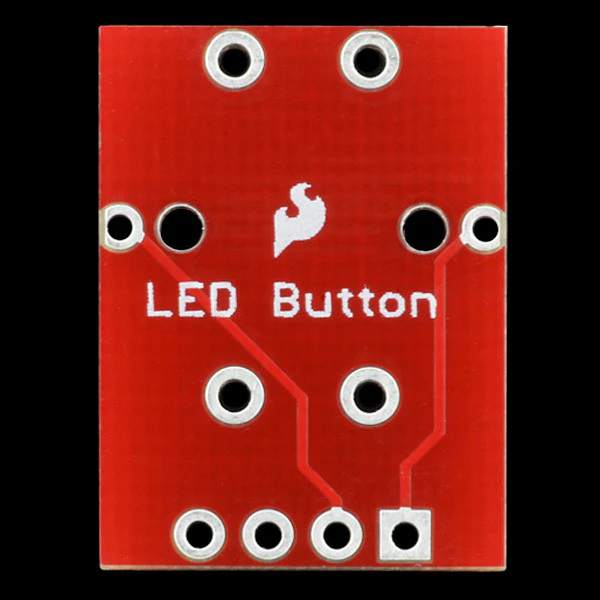

LED Tactile Button Breakout

This simple breakout board makes it easy to use our LED tactile switches in a breadboard, or your next project.

Note: Populate the board according to the polarity of the LED on the switch. The markings for the switch are irrelevant and can be reversed.

Documents:

• Schematic
• Eagle Files
• GitHub
