$2.00The Story

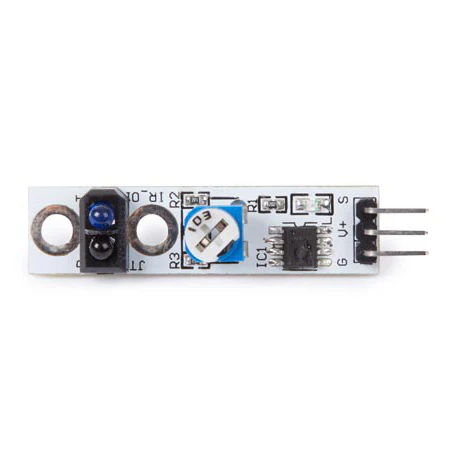

The Line Tracking Sensor based on TCRT5000 is an type of infrared reflectance sensor, and is commonly used in line following robots, it is mounted at the bottom of the robot chassis.
The line tracking sensor works by detecting reflected light coming from its own infrared LED and by measuring the amount of reflected infrared light, it can detect transitions from light to dark (lines) or even objects directly in front of it.
Features
- sensor adopts TCRT5000, high sensitivity
- sensitivity adjustable by potentiometer
- working voltage: 3.3 V - 5 V
- operating current: 20 mA
- digital switch output (0 and 1)
- has 2 fixed bolt holes, convenient installation
- small board PCB size: 42 x 10.5 mm
- power indicator light (red) and digital switch output indicator light (green)
- detection reflection distance: 1 mm - 25 mm
Manual
Info Sheets
Firmware
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Line Tracking Sensor based on TCRT5000 is an type of infrared reflectance sensor, and is commonly used in line following robots, it is mounted at the bottom of the robot chassis.
The line tracking sensor works by detecting reflected light coming from its own infrared LED and by measuring the amount of reflected infrared light, it can detect transitions from light to dark (lines) or even objects directly in front of it.
Features
- sensor adopts TCRT5000, high sensitivity
- sensitivity adjustable by potentiometer
- working voltage: 3.3 V - 5 V
- operating current: 20 mA
- digital switch output (0 and 1)
- has 2 fixed bolt holes, convenient installation
- small board PCB size: 42 x 10.5 mm
- power indicator light (red) and digital switch output indicator light (green)
- detection reflection distance: 1 mm - 25 mm
