LTE 4G Antenna

These 4G-compatible antennas with SMA connectors are perfect for using with our Clipper 4G LTE Breakout.

There's four kinds of antenna to choose from:

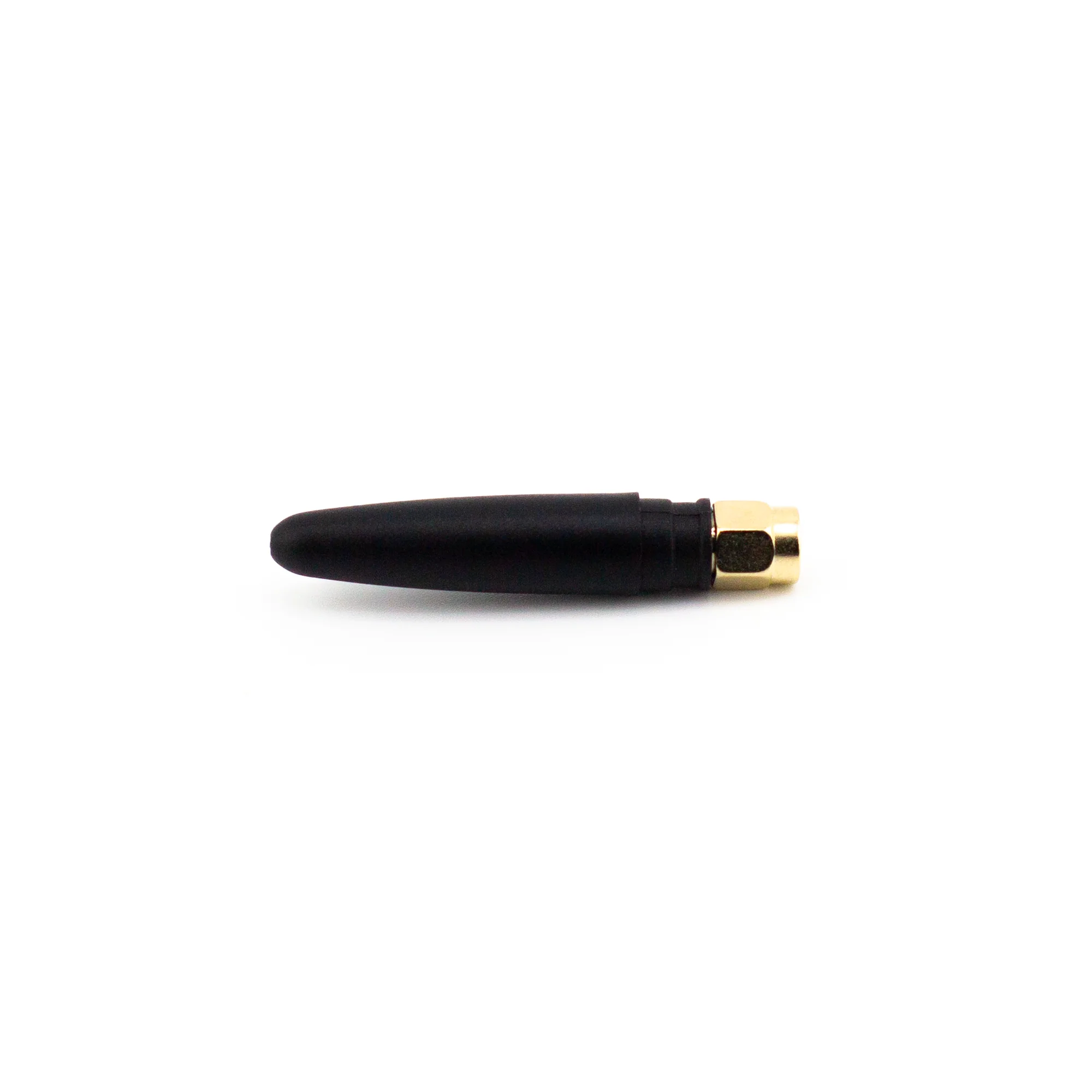

• Short stick - these have a fixed vertical angle so consider picking up a right angle adaptor if you want it to point out of the side of your board.

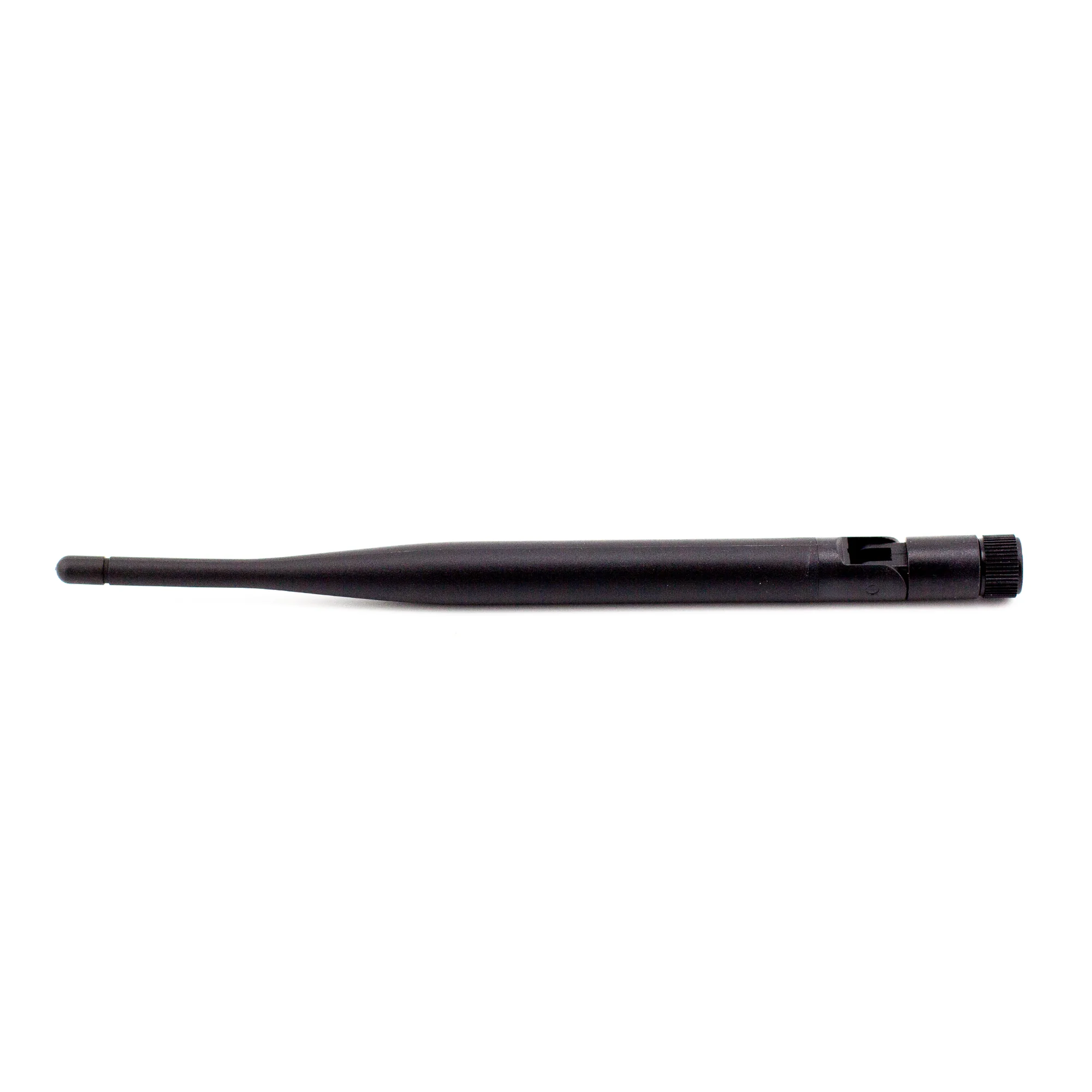

• Medium and long stick - these are jointed so you can adjust the angle.

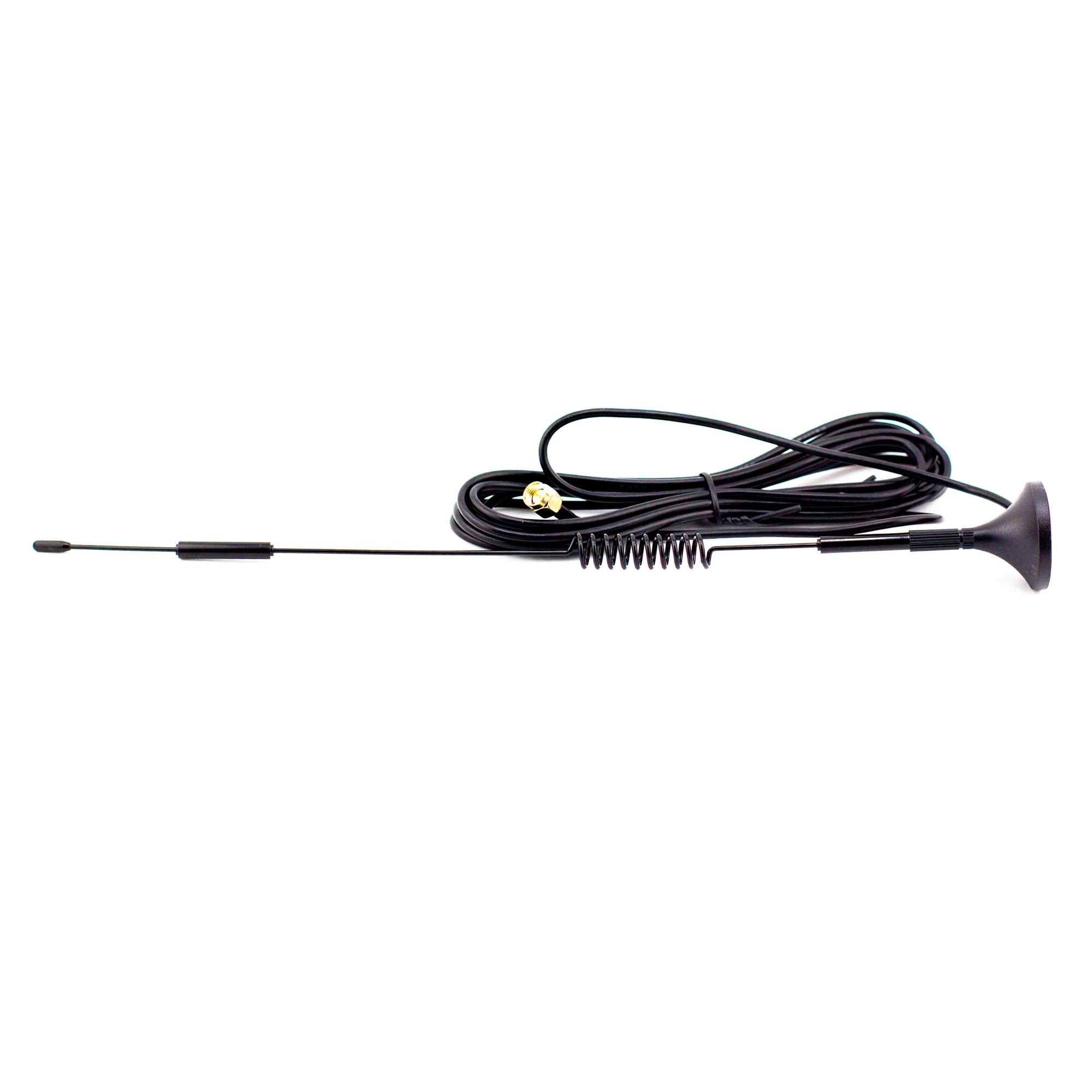

• Long magnetic with cable - these ones have a 3m cable attached to the end and a magnetic base so you can easily stick it on to metal surfaces.

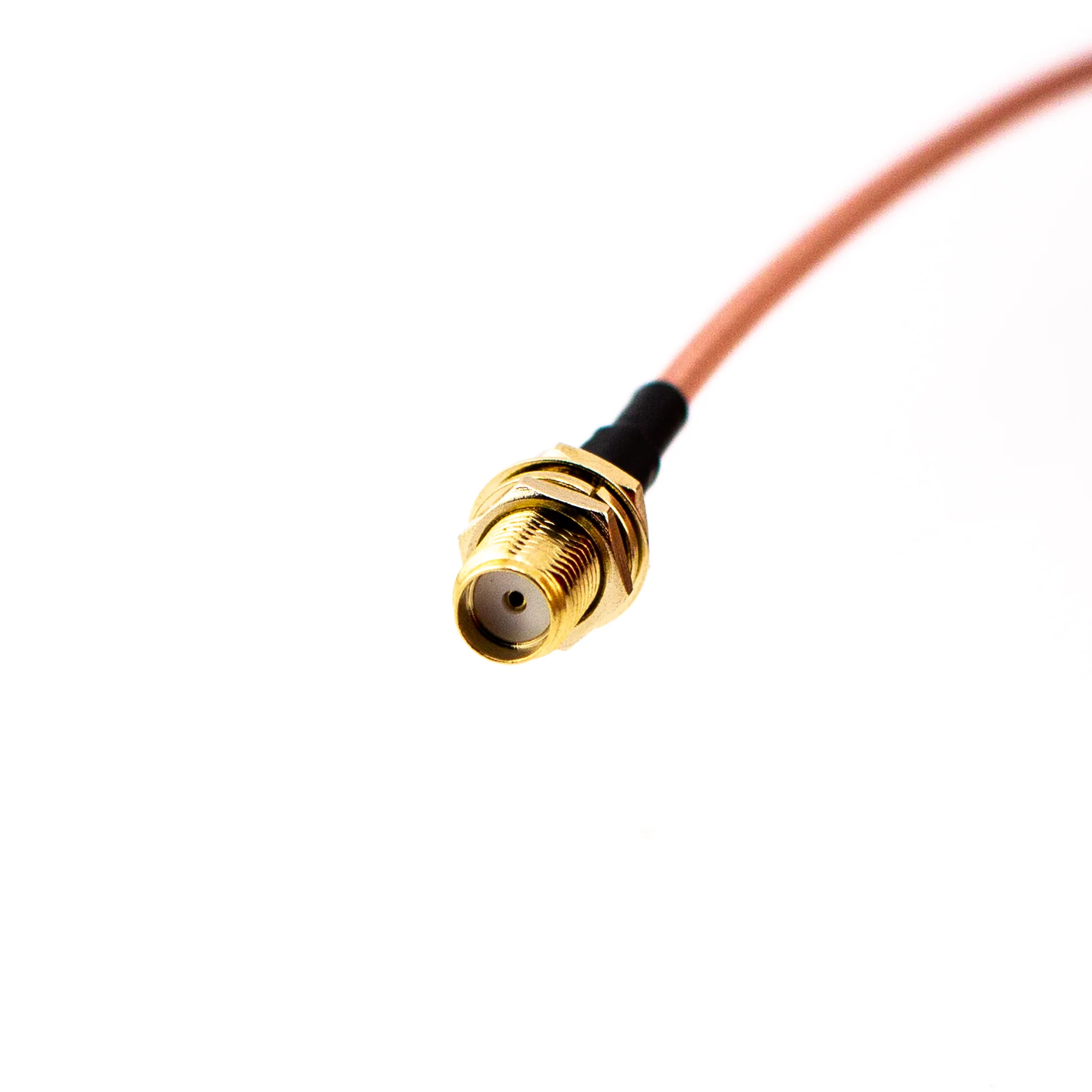

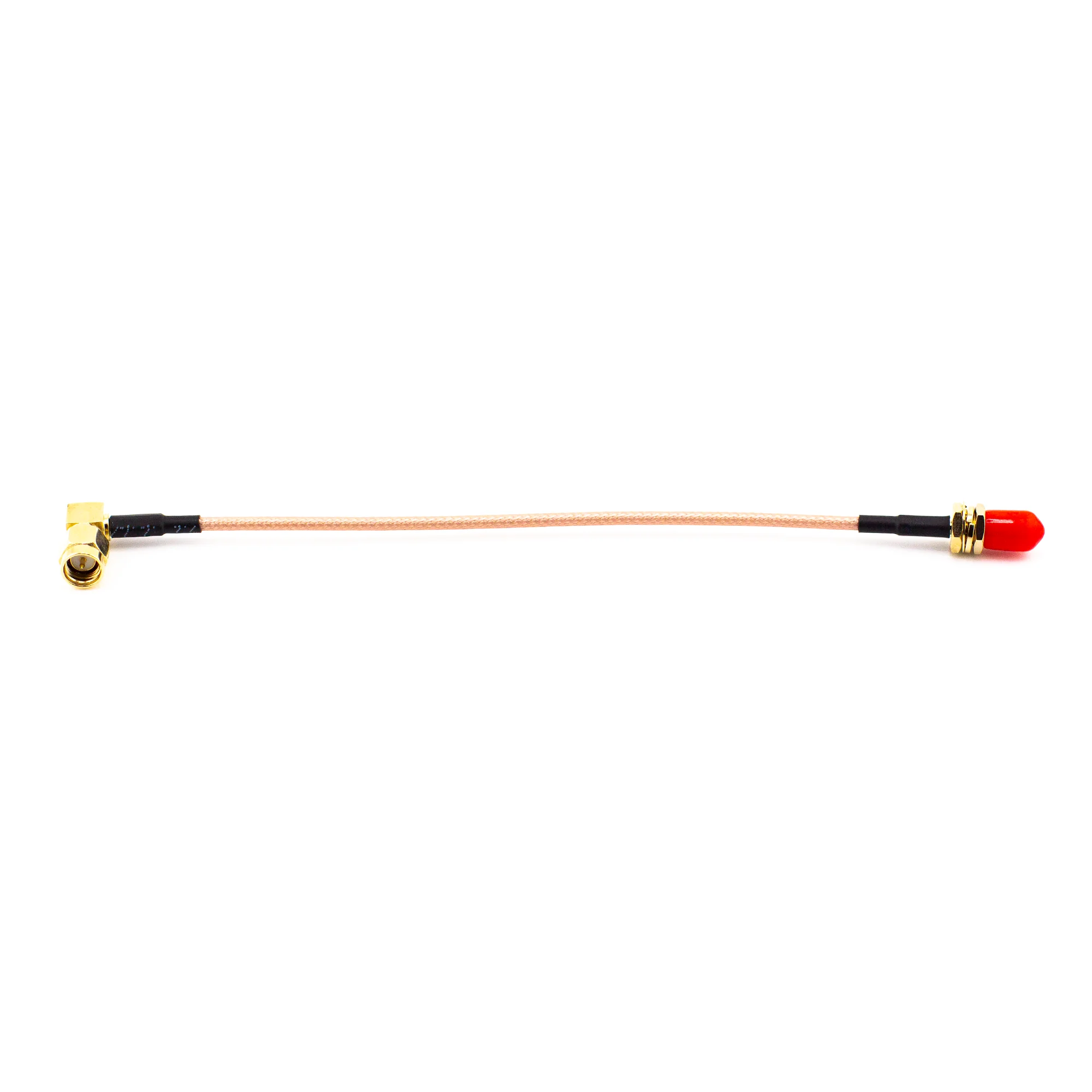

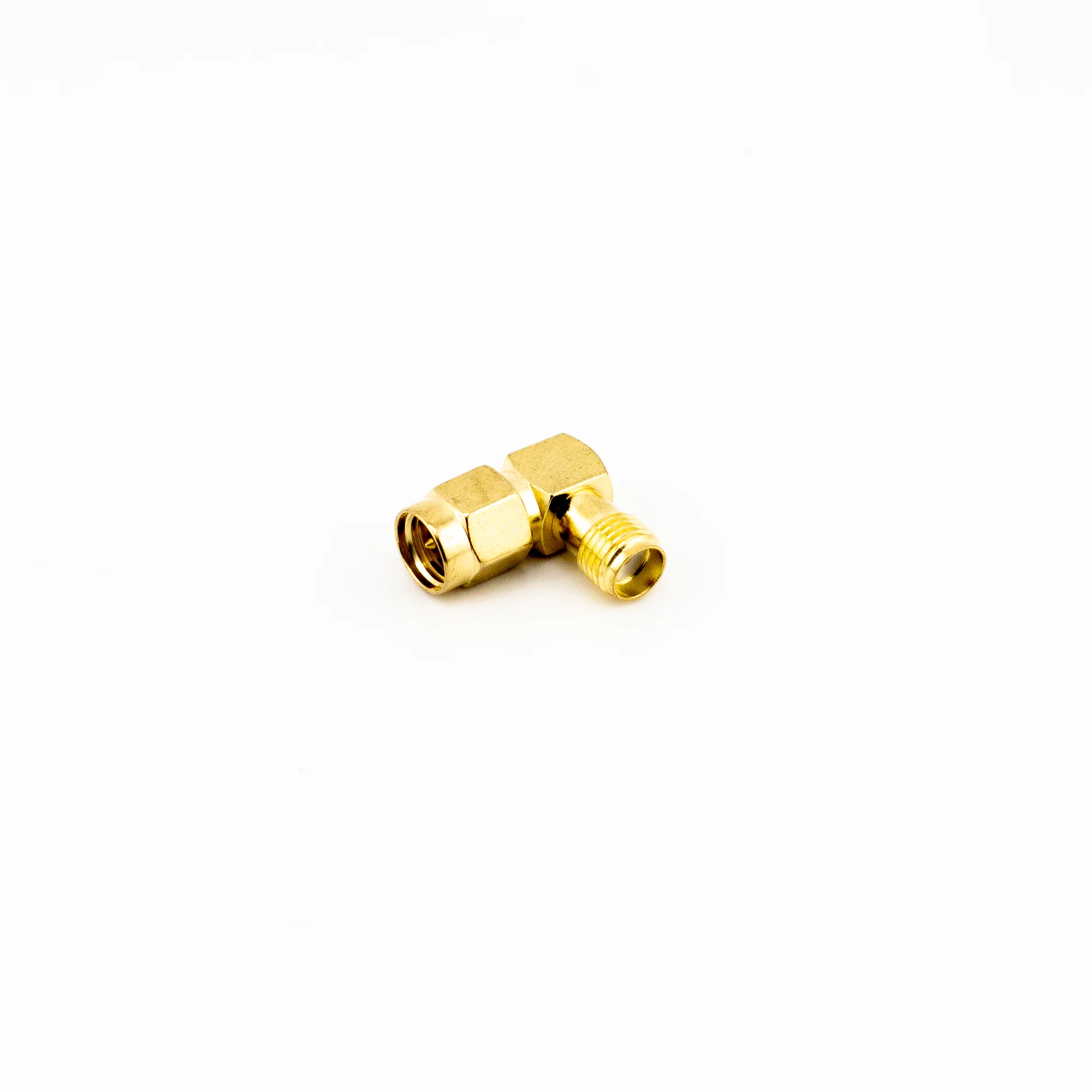

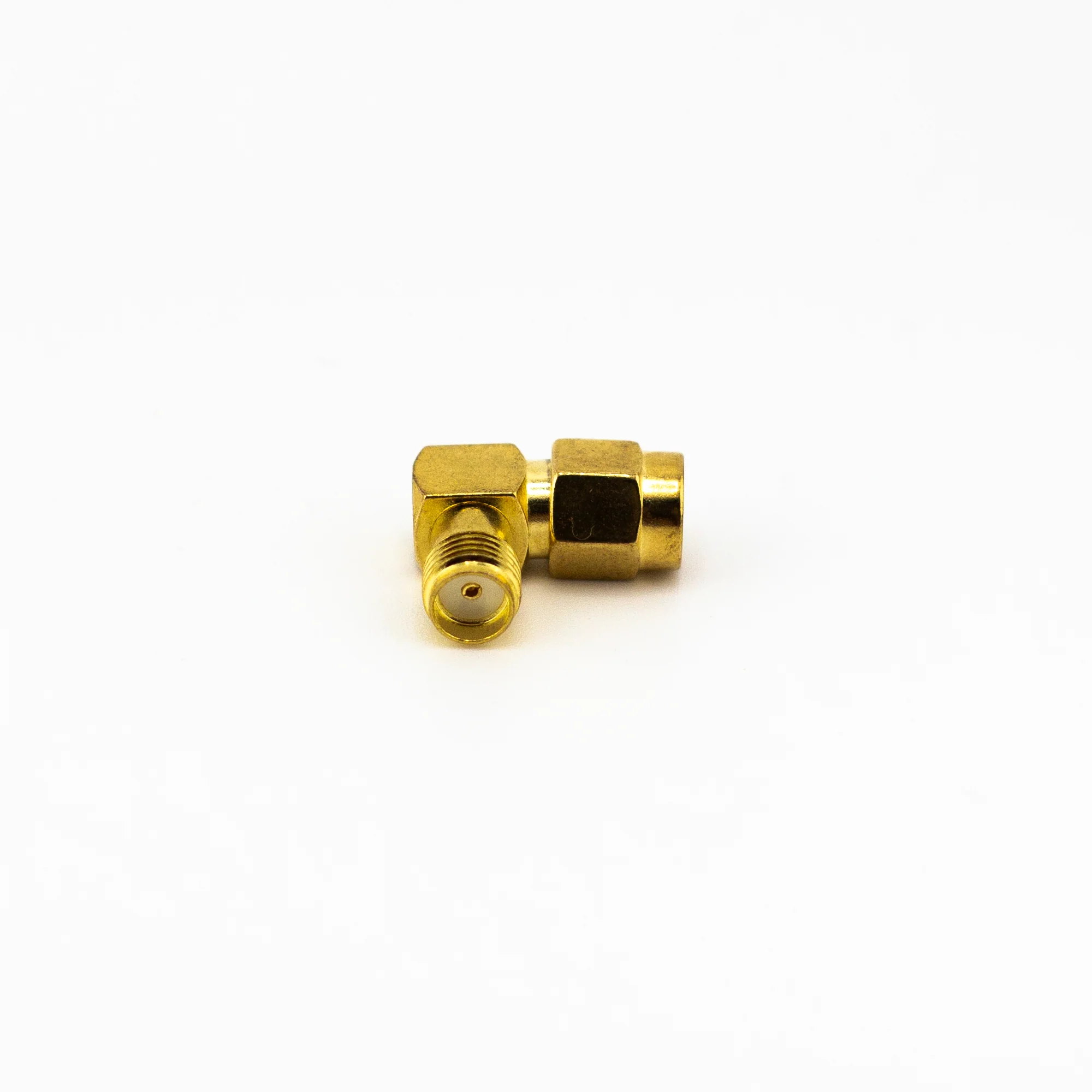

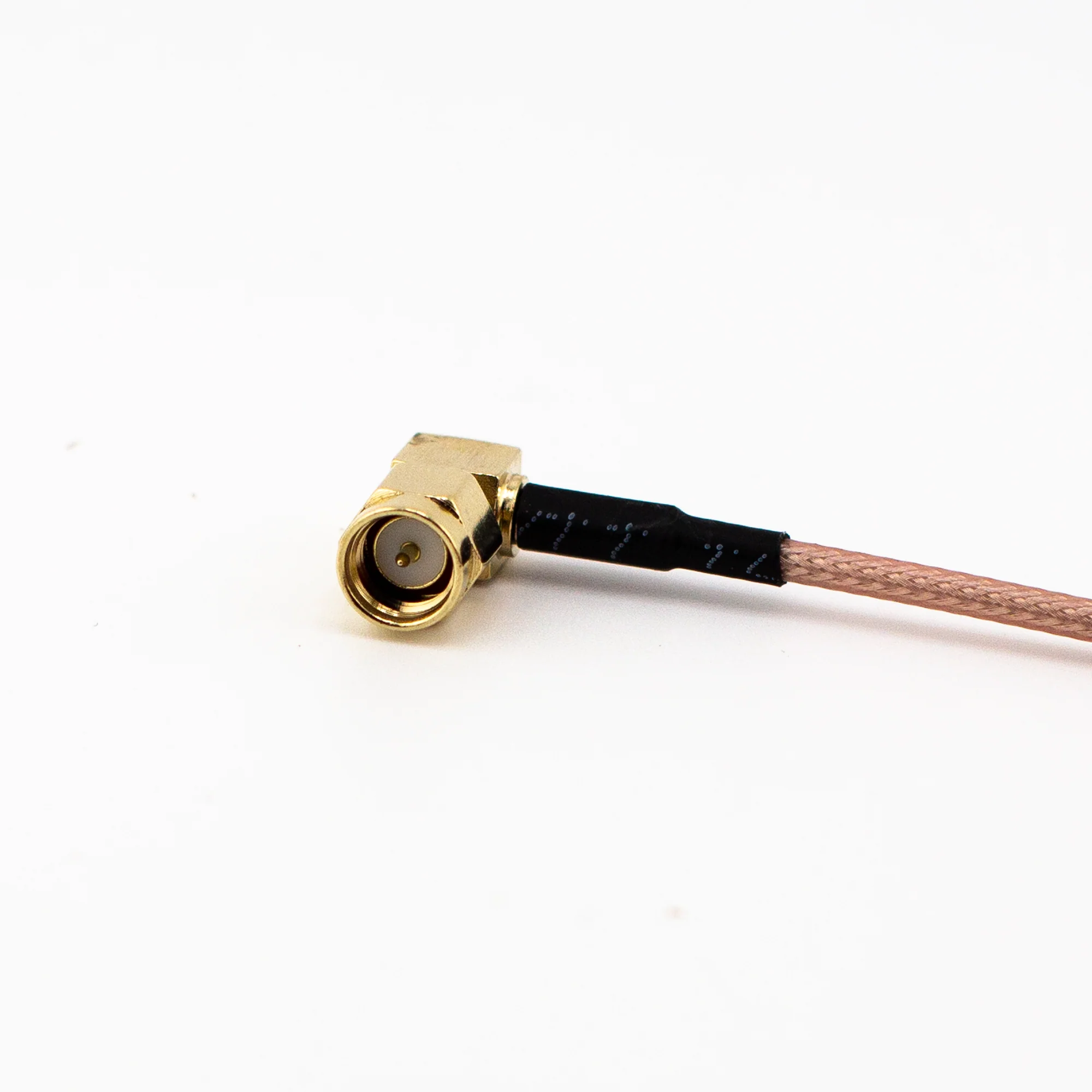

We also have some handy adaptors - a right angle adaptor so you can have your antenna coming out of your board at a different angle, and a flexible right angle extension cable that might be useful for mounting your antenna outside of an enclosure.

SKU	Frequency Range (MHZ)	Impedance(Ω)	Gain(dBi)	Drawing	Length (mm)
COM0643	700-2700	50	2±1	[link]	52
COM0642	700-2700	50	3±1	[link]	108
COM0641	700-2700	50	3±1	[link]	194
COM0640	700-2700	50	4±1	[link]	288
