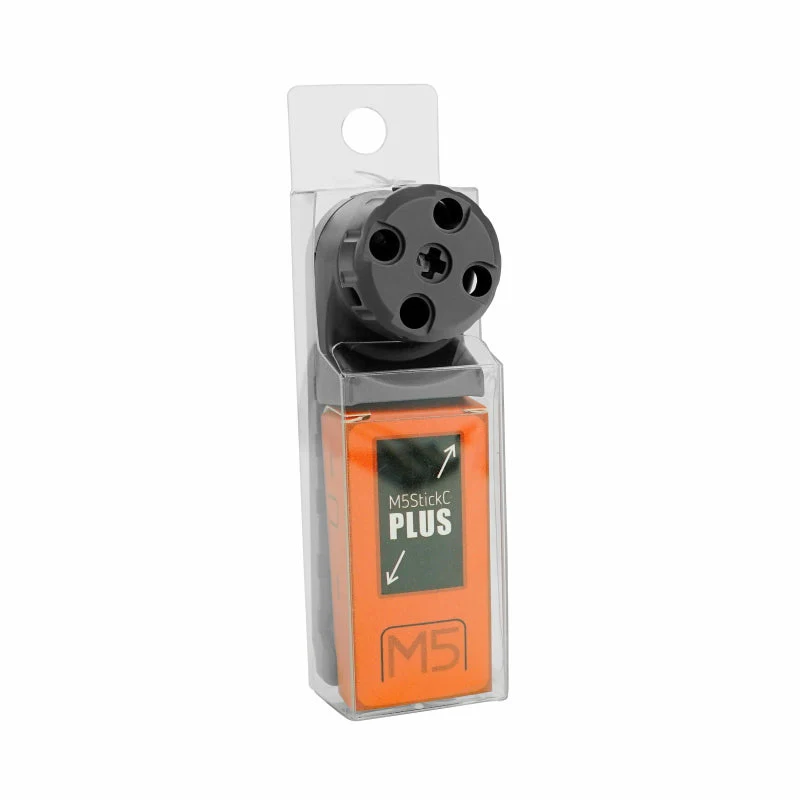

M5StickC Mini Encoder HAT (STM32F030)

MiniEncoderC HAT is a rotary encoder extension base for M5StickC/C-CPlus, which integrates a rotary AB encoder, with button function, and comes with standard Lego hole to facilitate the expansion of structural parts

It contains a 200mAh polymer lithium battery and an SK6812 RGB LED. This product can be used to remotely adjust RGB lighting and remotely control robot joints.

Features

• 30-bit pulse coding knob (30 pulses per revolution)
• SK6812 programmable RGB LED
• Press the key input
• HY2.0-4P interface
• 4x LEGO connectors

Includes

• 1x MiniEncoderC HAT
• 1x lanyard

Applications

• Adjust the lights remotely
• Remote control of robot joints

PLEASE NOTE: M5StickC/C-CPlus is NOT included

Specification

Resources	Parameters
MCU	STM32F030F4P6
support voltage	3.3V
RGB	SK6812-3535
Battery level	200mAh
Product Size	81.05mm × 29mm × 24mm
Package Size	101mm × 27mm × 22mm
Product Weight	19.3g
Package Weight	24.5g

Documentation

• STM32F030F4P6
• Schematic & Examples
