$1.30
Original: $4.34
-70%Micro 180° Angular Rotation Servo (FS90)—
$4.34
$1.30The Story
An analog micro servo motor, ideal for adding precise movement to your microcontroller and robotics projects. Comes with a selection of servo horns.
Looking for a servo controller? Check out Servo 2040 and Inventor 2040 W!
| Dimensions: | 22.5 x 12.1 x 22.4mm |
| Weight: | 9g |
| Operating voltage: | 4.8 to 6V |
| Operating speed: | 4.8V: 0.12sec/60degree 6V: 0.10sec/60degree |
| Peak stall torque: | 4.8V: 1.3kg/cm 6V: 1.5kg/cm |
| Operating angle: | 120° (900～2100 μsec) 180° (500～2500 μsec) |
| Control system: | Analog |
| Rotating direction: |
CW (1500～900 μsec) CCW (1500～2100 µsec) |
| Required pulse: | 900～2100 μsec |
| Bearing type: | None |
| Gear type: | Plastic |
| Motor type: | Metal |
| Connecting wire length: | 25 cm, approx |
| Datasheet | link |

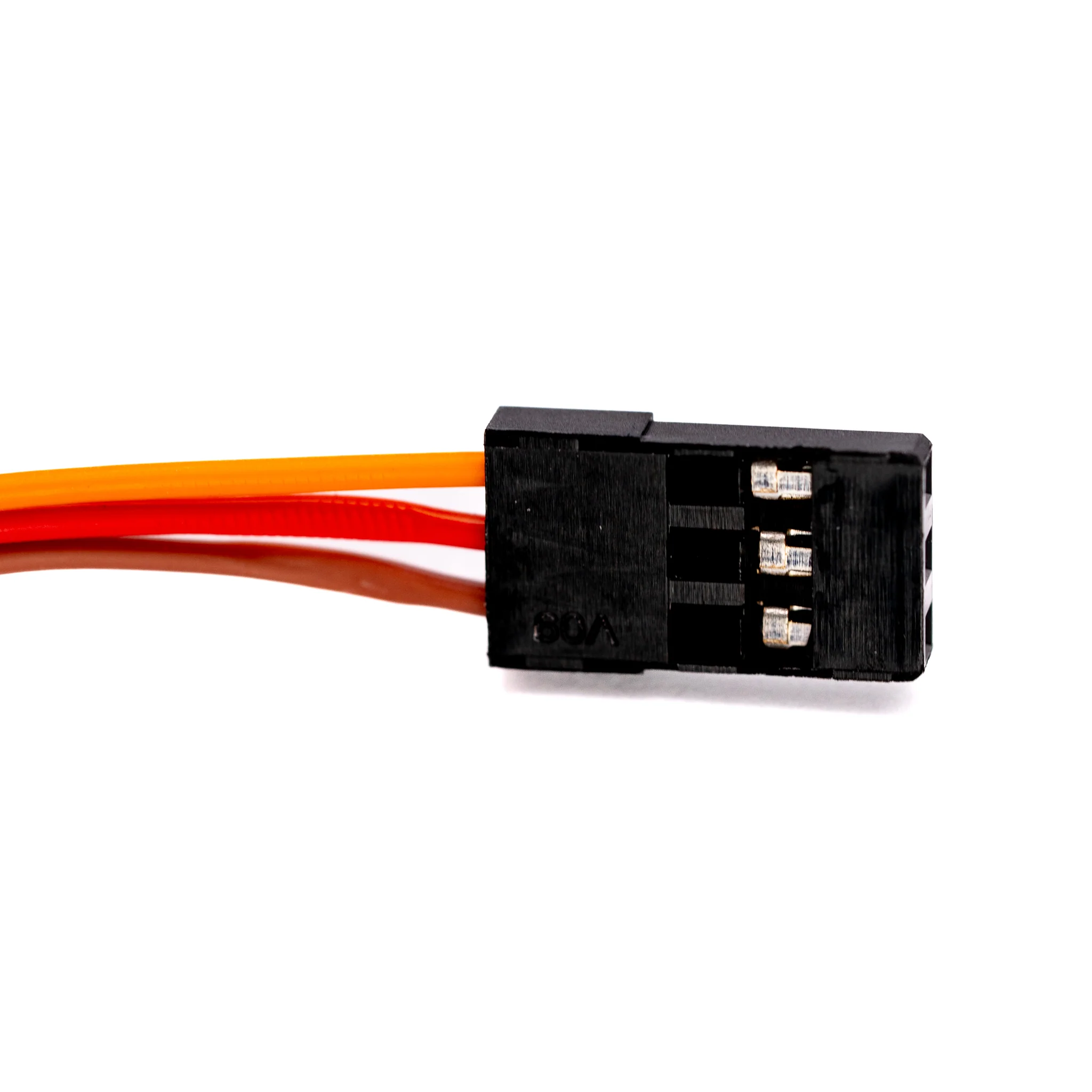

Pinout
- Red: Power / VIN
- Orange: Signal / data
- Brown: Ground
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
An analog micro servo motor, ideal for adding precise movement to your microcontroller and robotics projects. Comes with a selection of servo horns.
Looking for a servo controller? Check out Servo 2040 and Inventor 2040 W!
| Dimensions: | 22.5 x 12.1 x 22.4mm |
| Weight: | 9g |
| Operating voltage: | 4.8 to 6V |
| Operating speed: | 4.8V: 0.12sec/60degree 6V: 0.10sec/60degree |
| Peak stall torque: | 4.8V: 1.3kg/cm 6V: 1.5kg/cm |
| Operating angle: | 120° (900～2100 μsec) 180° (500～2500 μsec) |
| Control system: | Analog |
| Rotating direction: |
CW (1500～900 μsec) CCW (1500～2100 µsec) |
| Required pulse: | 900～2100 μsec |
| Bearing type: | None |
| Gear type: | Plastic |
| Motor type: | Metal |
| Connecting wire length: | 25 cm, approx |
| Datasheet | link |
Pinout
- Red: Power / VIN
- Orange: Signal / data
- Brown: Ground
