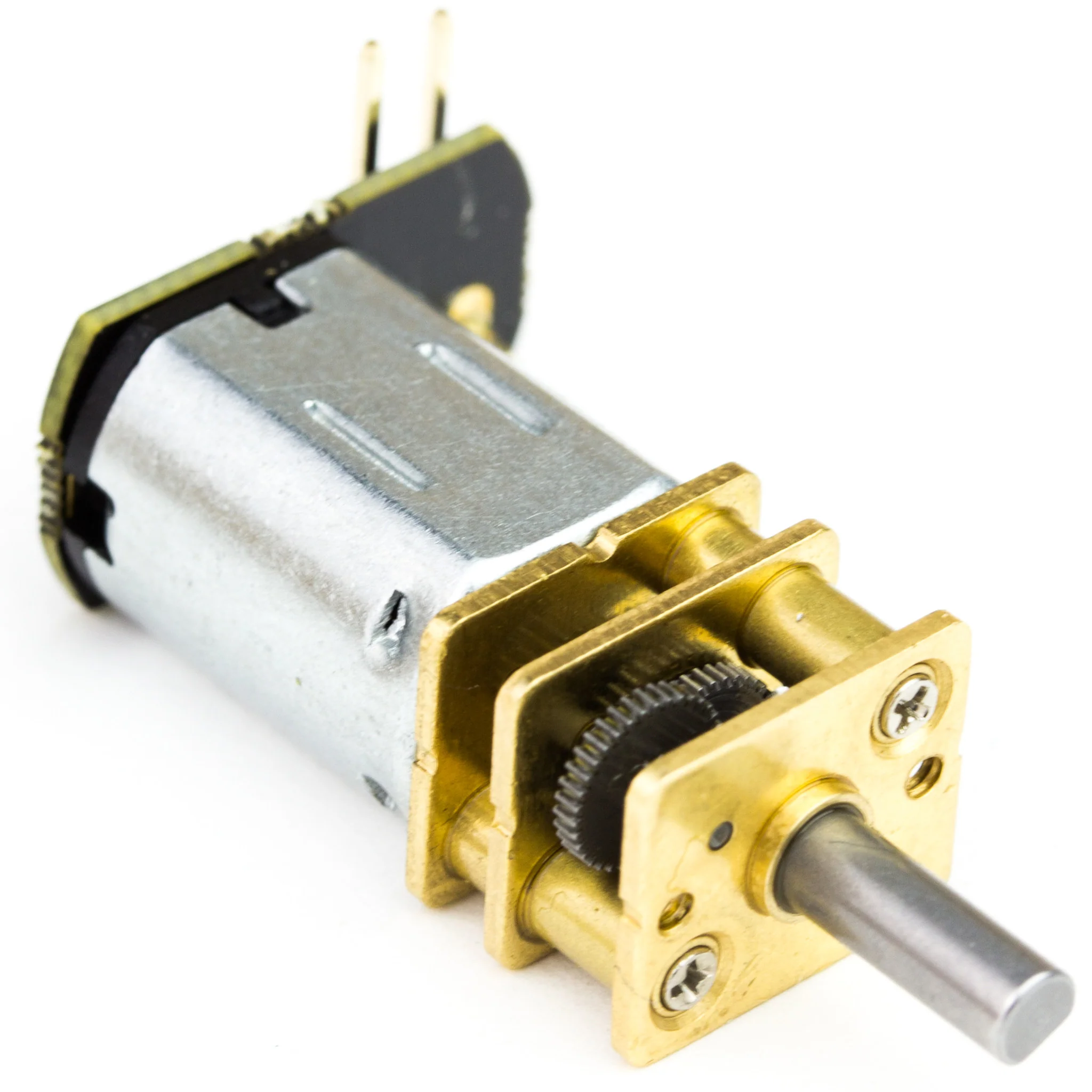

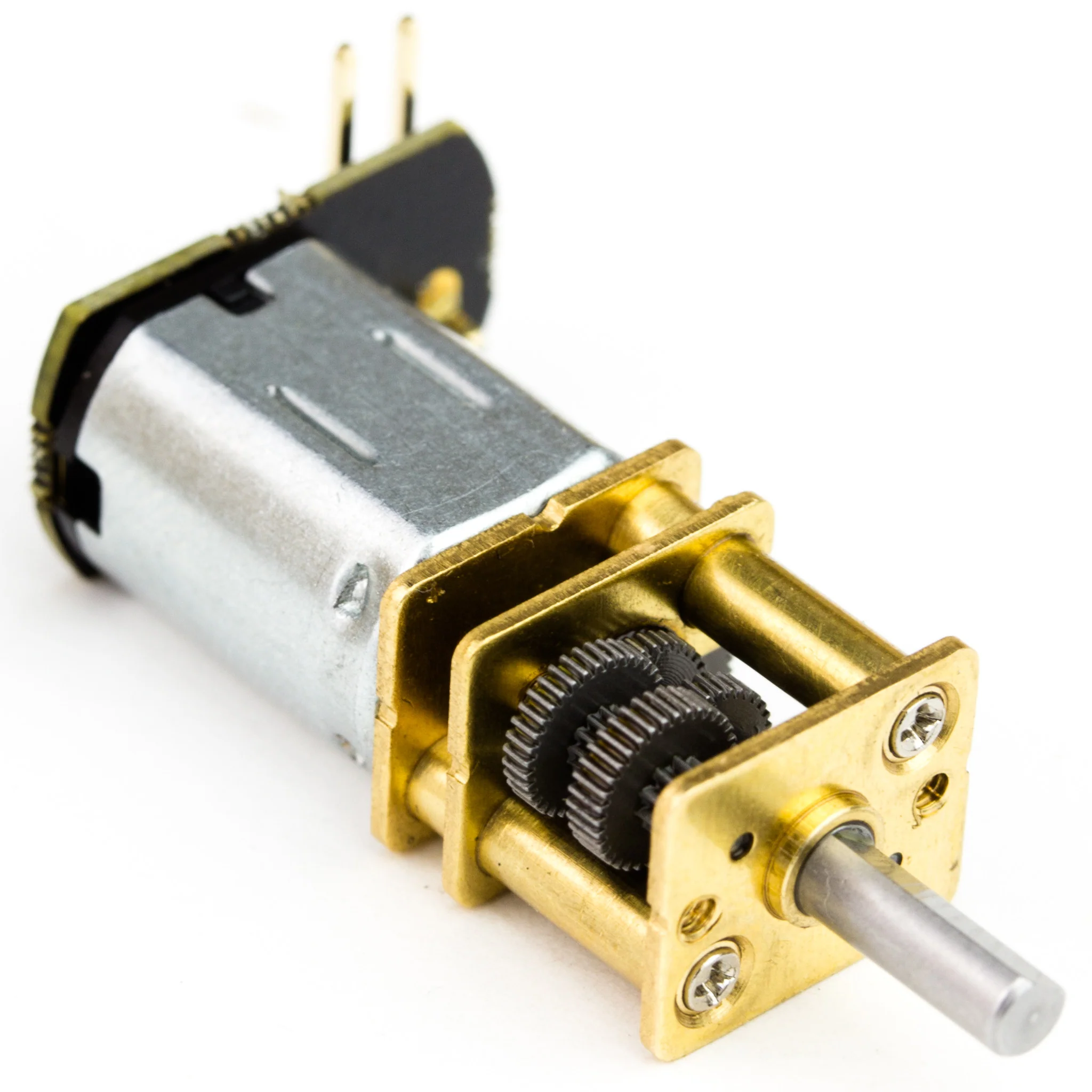

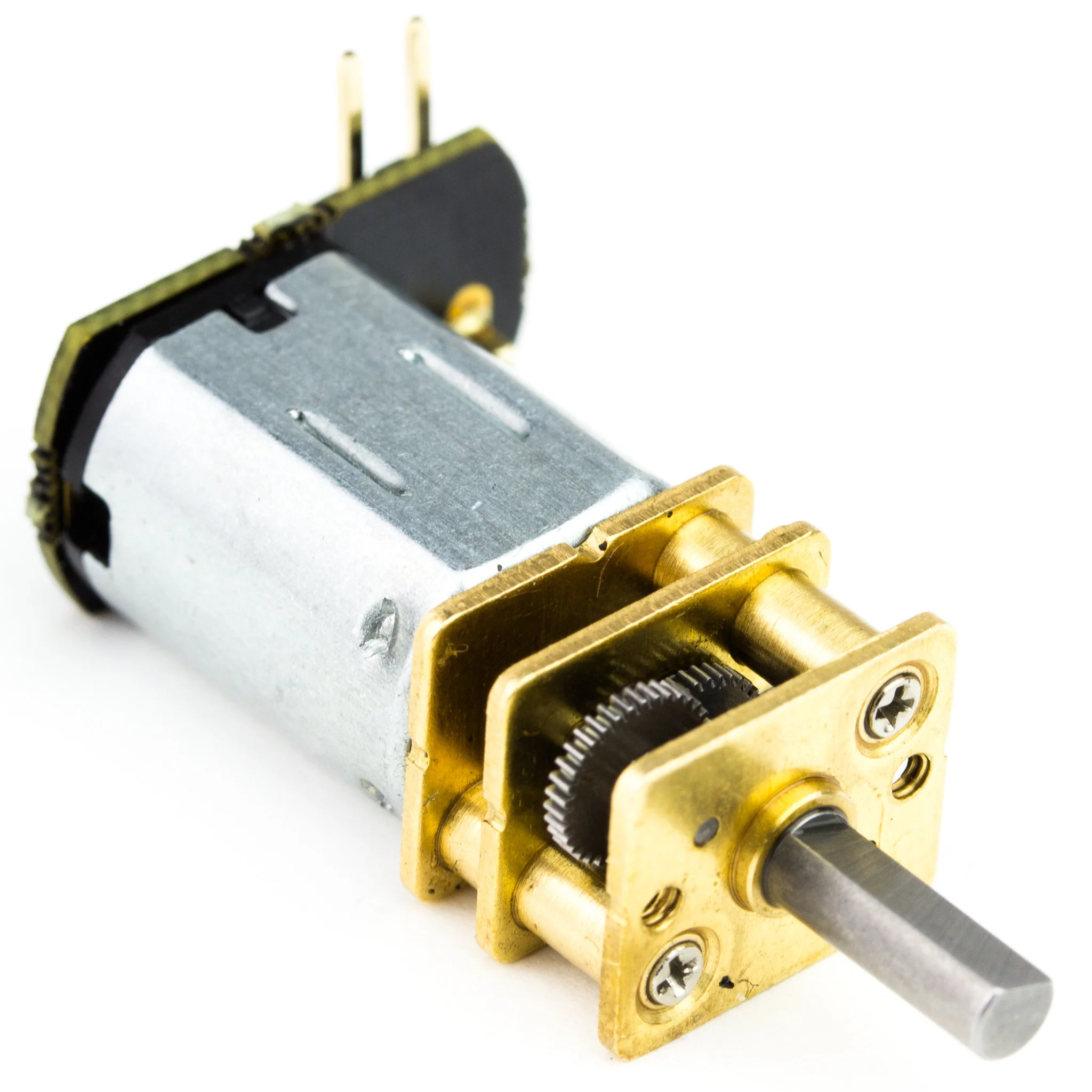

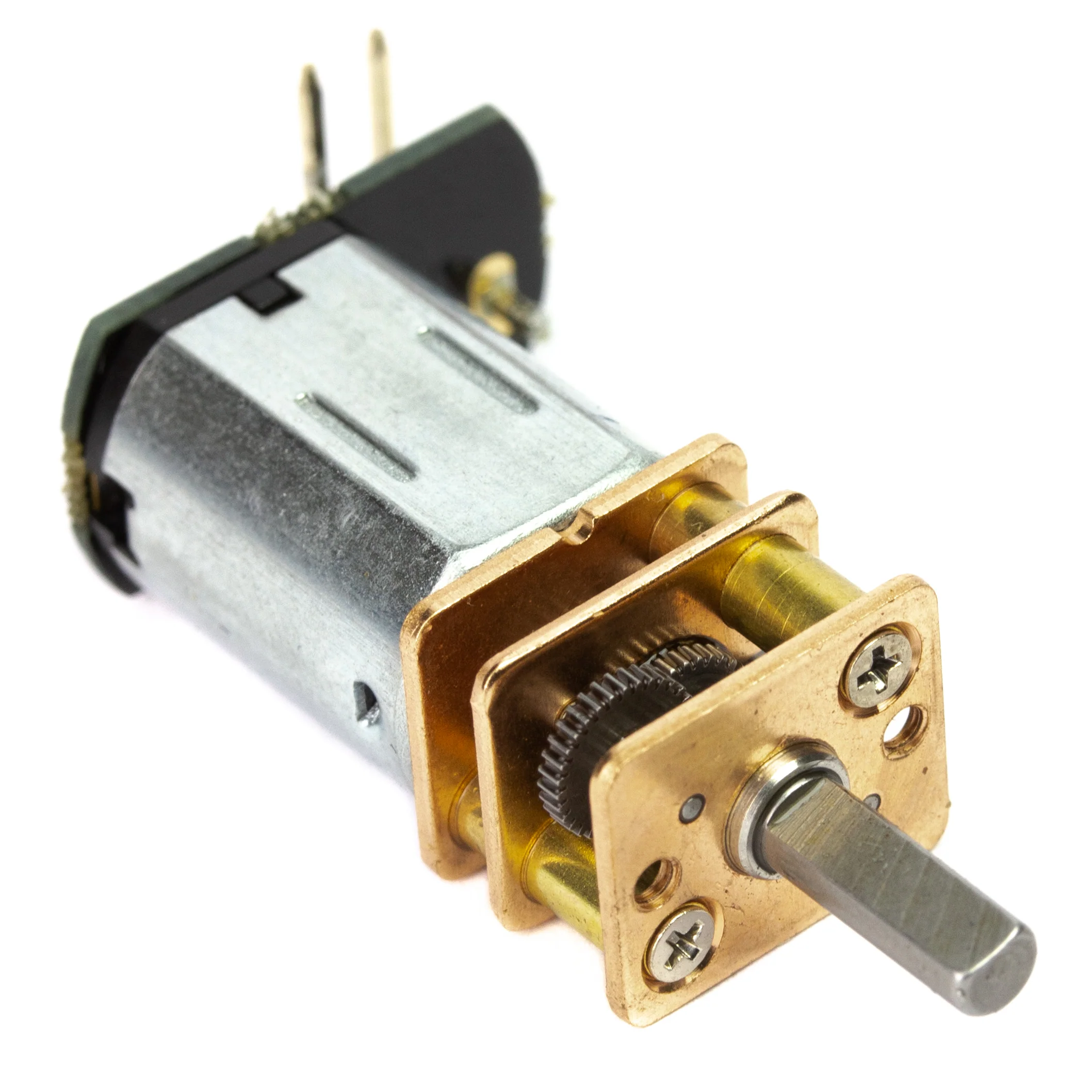

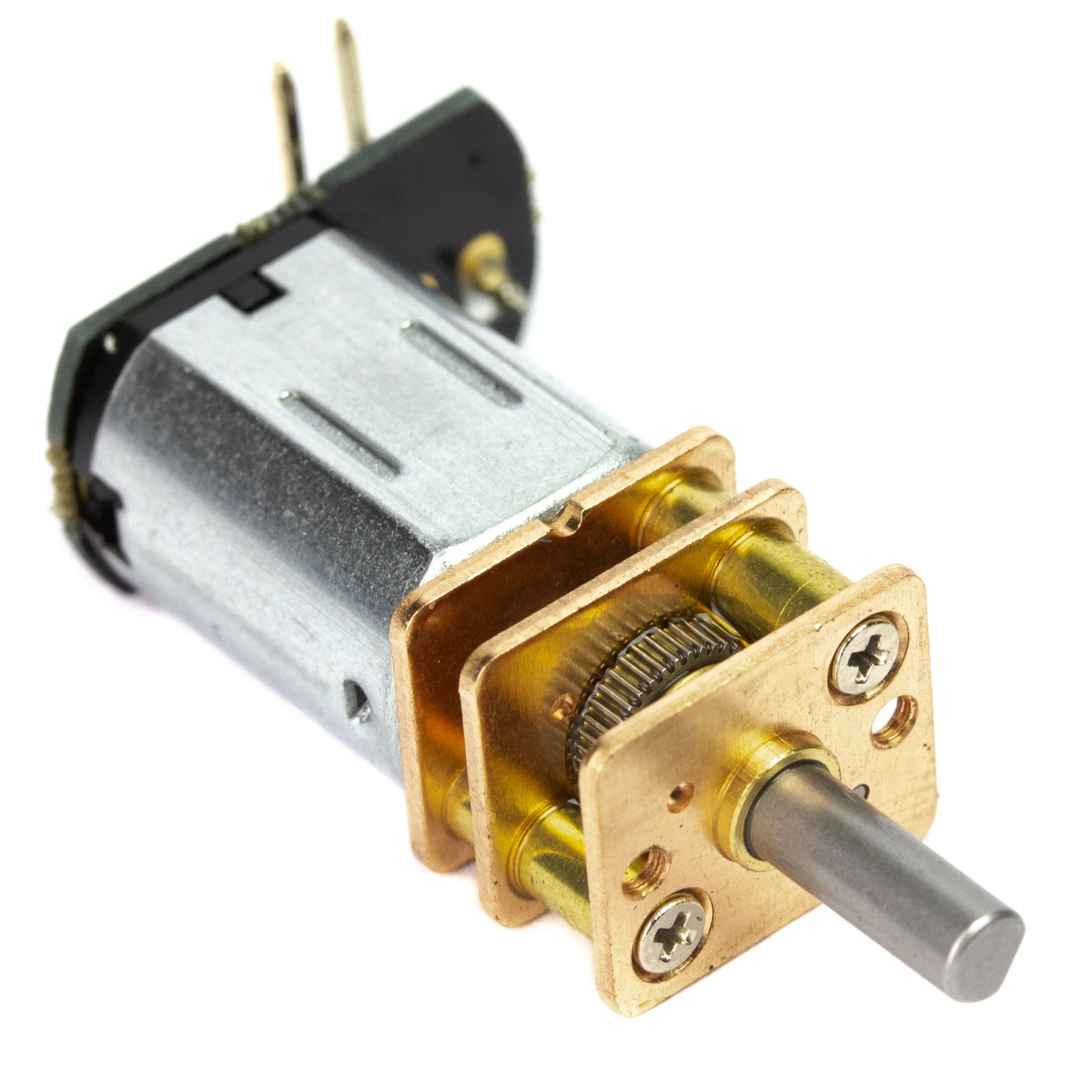

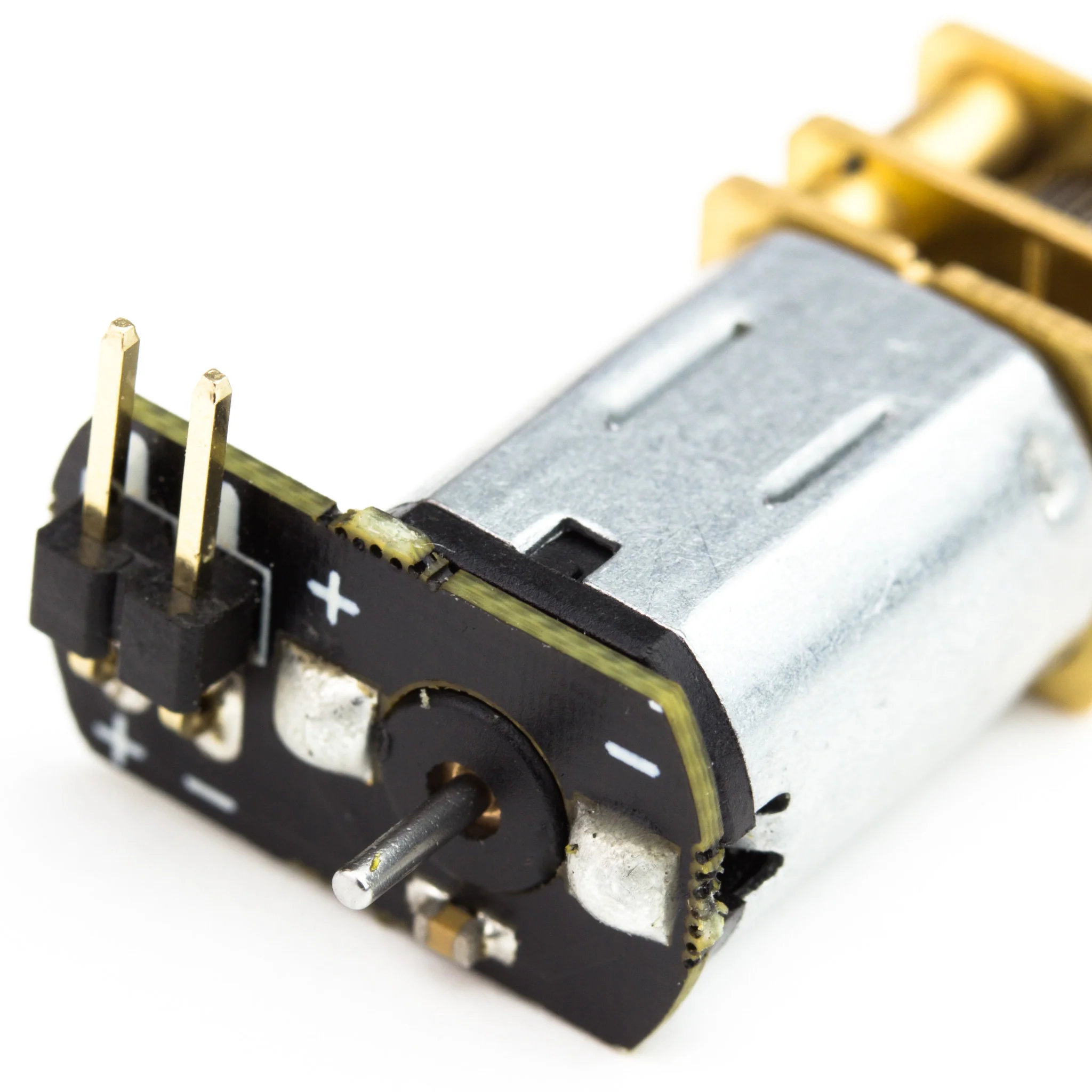

Our ever popular micro metal gearmotor, now available with a solderless push header shim for ease of prototyping!
Connect your motor to your project with some jumper jerky and you're good to go!
This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use.
| Ratio | Speed @ 6V | Free-run current @ 6V | Stall torque @ 6V (minimum) | Stall current @ 6V | |
|---|---|---|---|---|---|
| 11:1 | 1800±10% rpm | 80mA (160mA max) | 0.12kg. cm | 650mA | datasheet |
| 20:1 | 1050±10% rpm | 90mA (180mA max) | 0.26kg. cm | 850mA | datasheet |
| 50:1 | 420±10% rpm | 90mA max | 0.4kg. cm | 920mA | datasheet |
| 298:1 | 75±10% rpm | 100mA max |
2.1kg. cm | 920mA | datasheet |
| 1006:1 | 14.2±10% rpm | 56mA max |
2.9kg. cm | 380mA | datasheet |
- All of the micro metal gearmotors, except the 1006:1 variant, have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
- Long (12mm), 3 mm-diameter D-shaped metal output shaft.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Our ever popular micro metal gearmotor, now available with a solderless push header shim for ease of prototyping!
Connect your motor to your project with some jumper jerky and you're good to go!
This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use.
| Ratio | Speed @ 6V | Free-run current @ 6V | Stall torque @ 6V (minimum) | Stall current @ 6V | |
|---|---|---|---|---|---|
| 11:1 | 1800±10% rpm | 80mA (160mA max) | 0.12kg. cm | 650mA | datasheet |
| 20:1 | 1050±10% rpm | 90mA (180mA max) | 0.26kg. cm | 850mA | datasheet |
| 50:1 | 420±10% rpm | 90mA max | 0.4kg. cm | 920mA | datasheet |
| 298:1 | 75±10% rpm | 100mA max |
2.1kg. cm | 920mA | datasheet |
| 1006:1 | 14.2±10% rpm | 56mA max |
2.9kg. cm | 380mA | datasheet |
- All of the micro metal gearmotors, except the 1006:1 variant, have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
- Long (12mm), 3 mm-diameter D-shaped metal output shaft.
