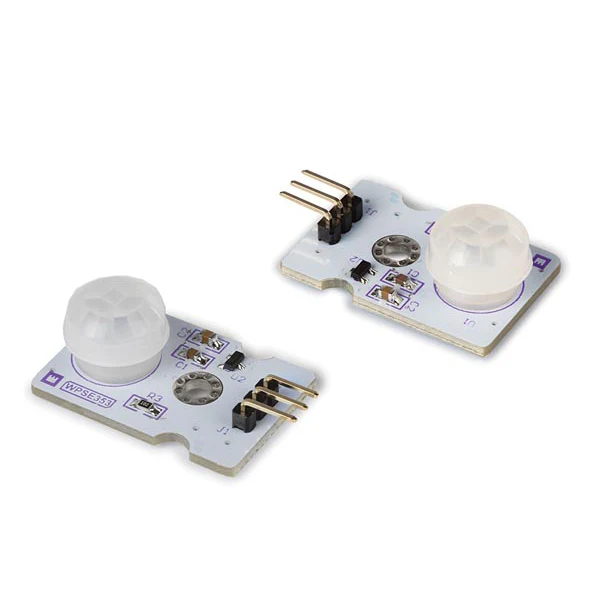

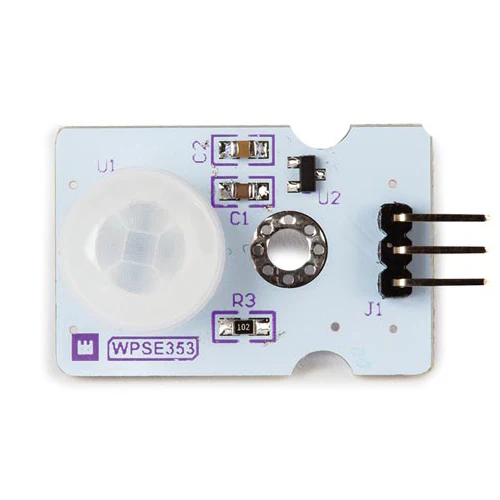

Micro PIR Motion Sensor (2 pcs)

This super compact module can detect motion from a distance of up to 4 meters by using infrared. Aside from the distance, it can coveran angle of 100°.

This sensor is easy to interface and uses simple logic level signal output.

Features

• detects motion from up to 4 meters away
• easy to interface with, uses a simple logic level signal output
• 2 modules included

Specifications

• supply voltage: 3,3 - 5 V
• operating current: 15 µA
• output signal voltage: high: 3 V, low: 0 V
• detection angle: 100°
• detection distance: 3 - 4 meters
• weight: 4 g
• dimensions (W x L x H): 34,4 x 20,0 x 12,5 mm
