MP2636 Power Booster & Charger Module

Power boost and LiPo battery charging on one board!

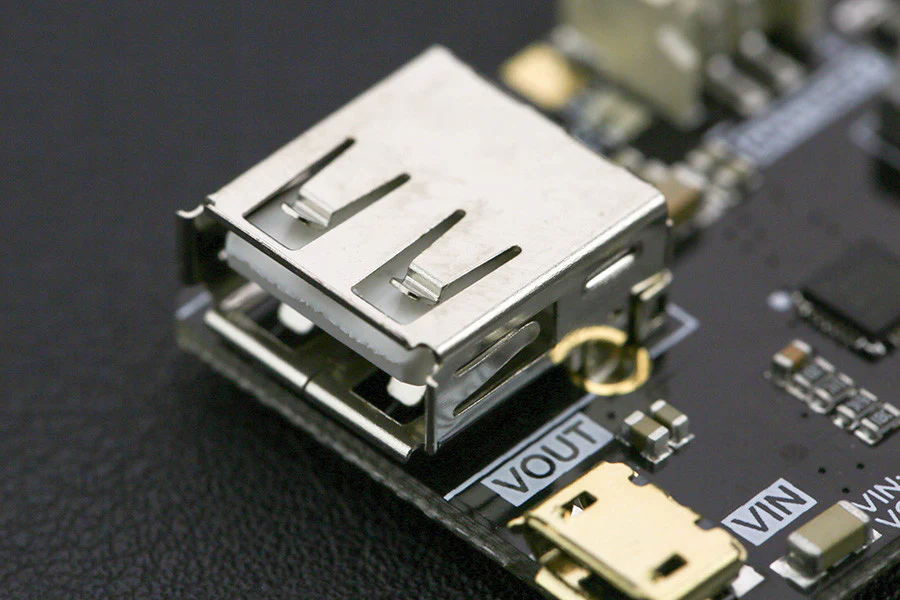

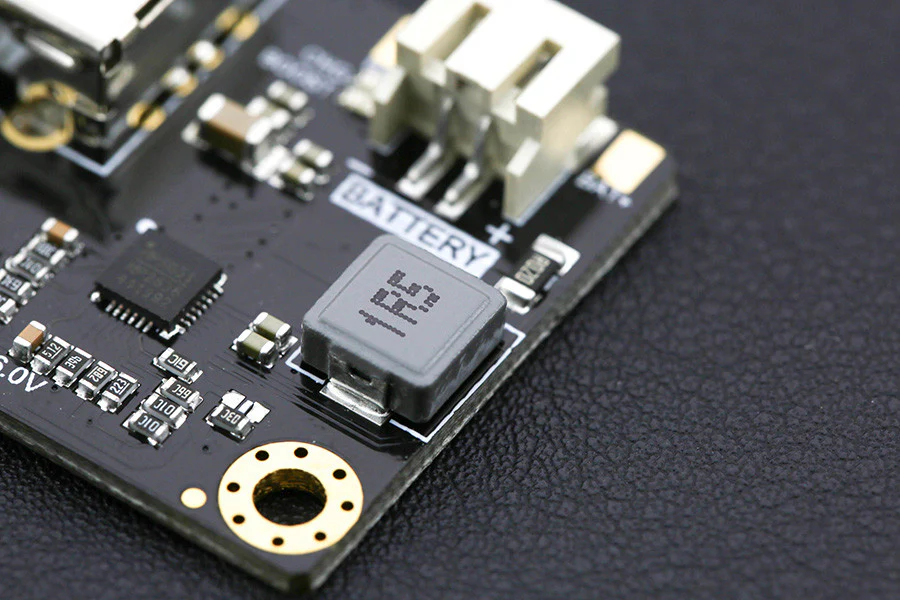

The Monolithic Power Systems (MPS) MP2636 is highly-integrated, flexible switch-mode battery charger with system power path management, designed for single-cell Liion or Li-Polymer batteries used in a wide range of portable applications. It is really simple to use, plug in a lipo battery, it will work like a power bank. When there is an external power supply from VIN, it will charge the battery automatically, and the CHG led will light up; when there is no external power, only a battery on the battery port, the Boost will be ON.

SPECIFICATION

• Charge mode input voltage (VIN): 4.5-6.0V
• Boost mode output voltage (VOUT): 5V
• Suitable for battery voltage: 4.2V (3.7V lithium battery full of 4.2V)
• Charge mode Maximum charge current: 2.5A
• Boost mode Maximum output current: 2.5A
• Switching frequency: 600KHz
• Charging mode efficiency:> 90%
• Boost mode efficiency:> 90%
• Support battery overcharge protection
• Temperature protection: more than 150 ℃, automatic power failure

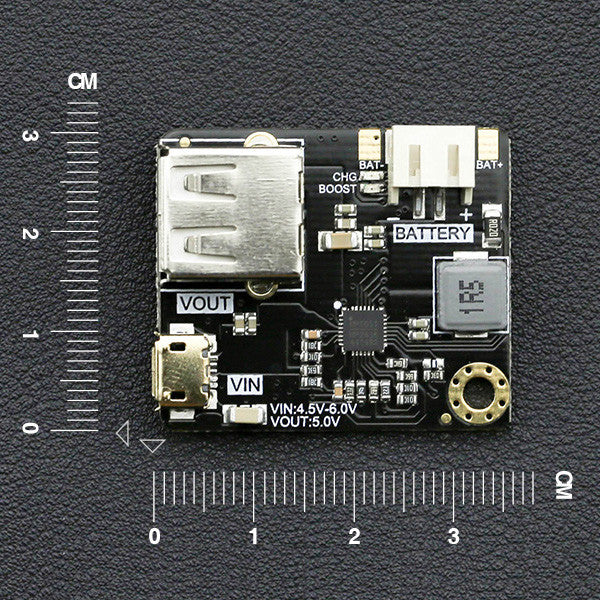

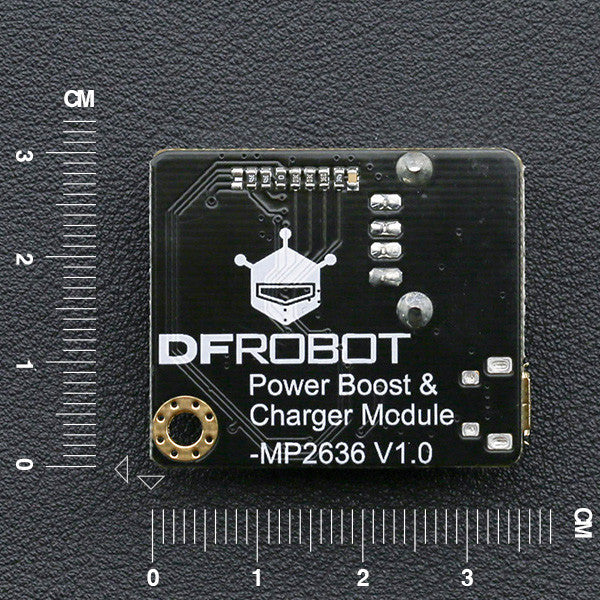

• Size: 35 * 30mm/ 1.38 * 1.18inches
• Weight: 12g

DOCUMENTS

• Schematic
• Datasheet

SHIPPING LIST

MP2636 Power Booster & Charger Module x1
