Sonoff Wi-Fi Smart Home Control Panel (NSPanel Pro)

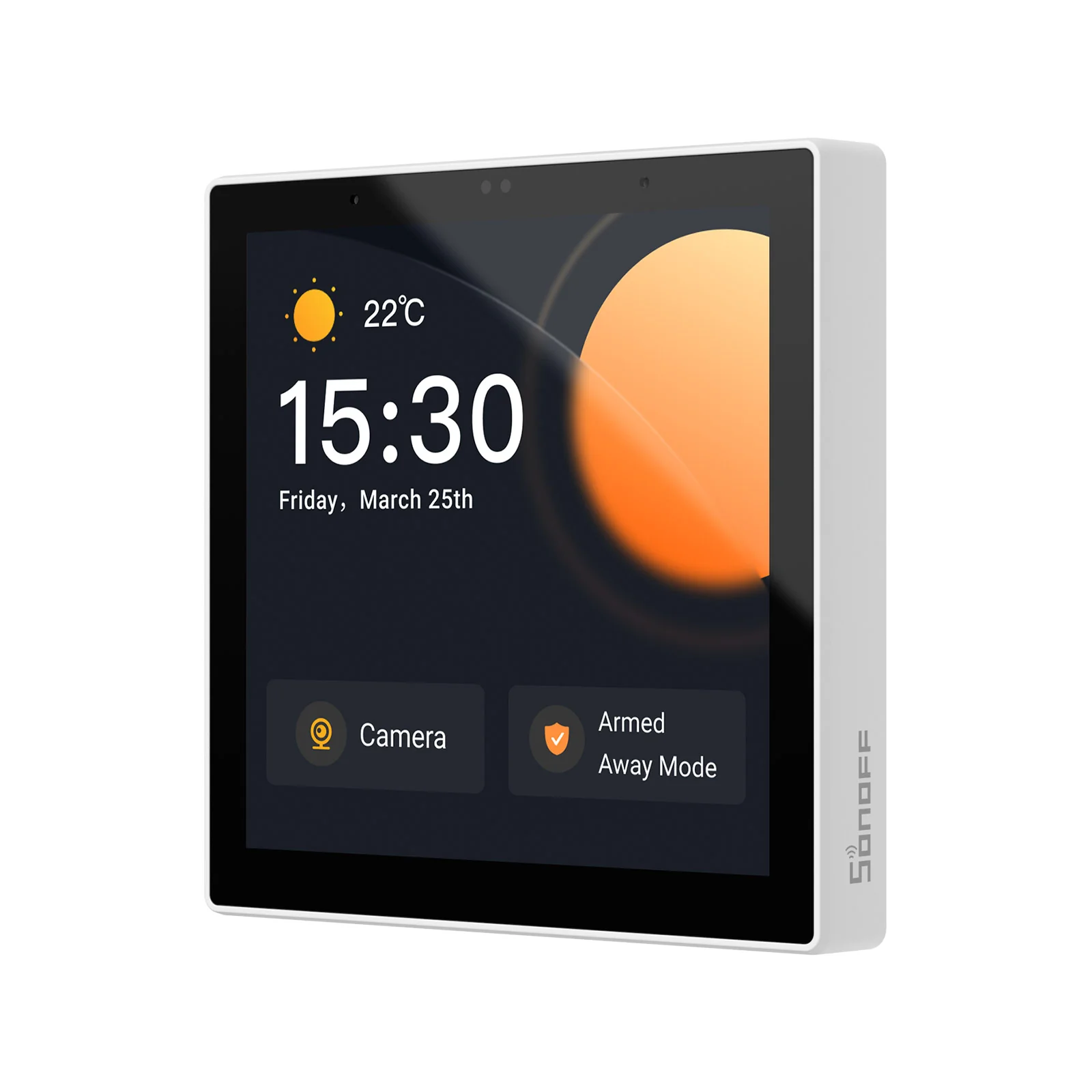

An all-in-one Wi-Fi smart home control panel with built in 4" (480x480 pixel) multi-touch display and Zigbee hub.

Take control of your devices and scenes with this stylish, wall mounted touchscreen panel. It provides convenient access to your camera feeds and lets you adjust other compatible smart home devices with ease. You can even use it as an intercom!

Features

• Supports all Sonoff smart devices including lights, radiator valves, cameras, sensors and switches.
• Set 3 security modes to guard your home. Once the sensor is triggered, the panel will alarm, and you will receive a notification alert via the eWeLink app
• View live feeds from security cameras, or use the panel as a two-way intercom (cameras are sold separately)
• Use it in hub mode to set up a new network of Zigbee devices or in router mode to expand the range of an existing Zigbee network.
• It's Matter-compatible, allowing third-party Matter devices to be added and controlled directly on the screen.


Installation

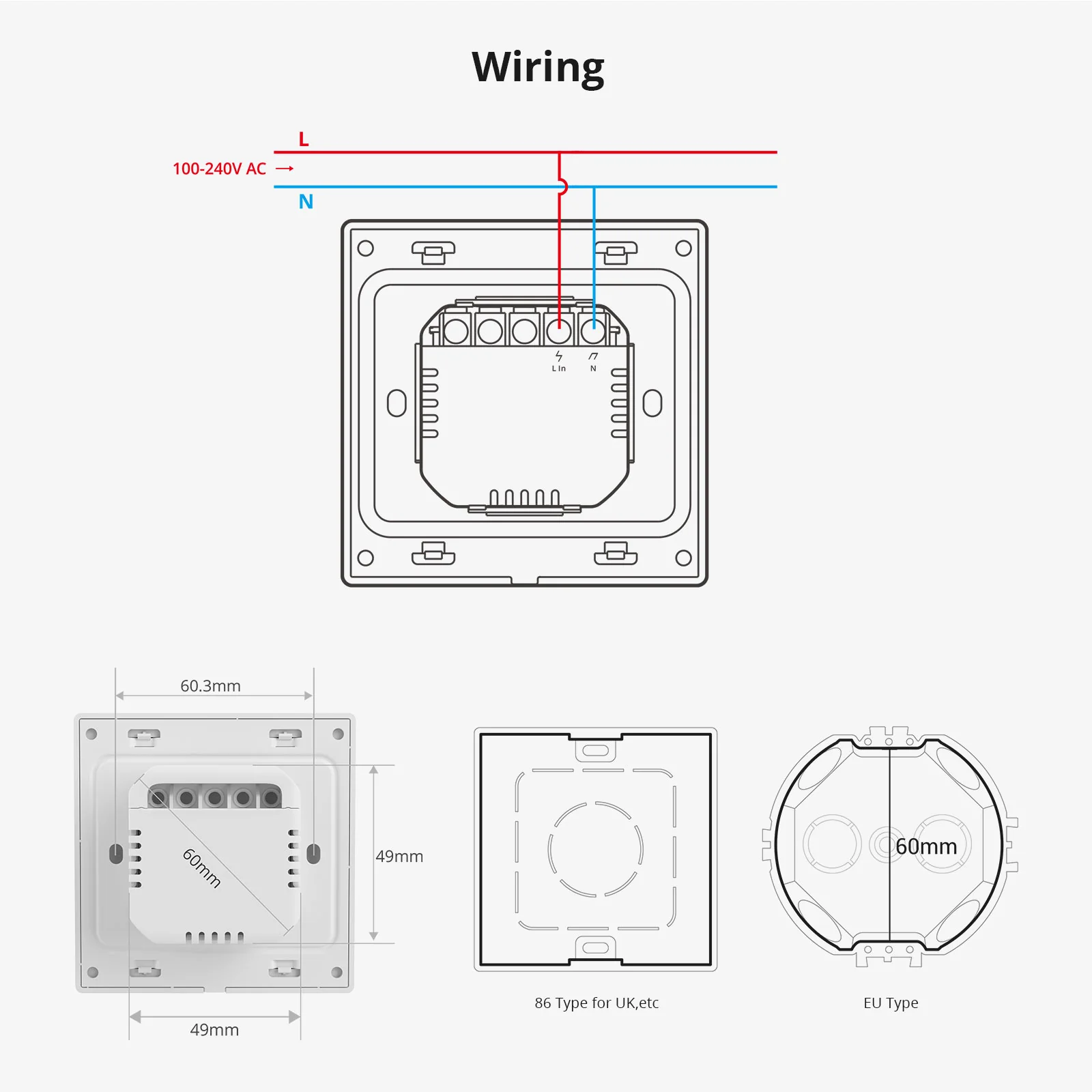

This product is designed to be wired into a 86 type or EU switch box with neutral wiring - note that NSPanel Pro doesn't include any switches or relays itself. Alternatively it can be installed in an Enclosure Stand (sold separately) if you'd rather keep it freestanding on a desk or shelf.

It also works with the Waterproof Enclosure if you want to put it somewhere where it needs to be protected from splashes or dust.

Note: This product requires mains wiring. Please ensure you have the skills and knowledge to install it safely or consult a qualified electrician!

In The Box

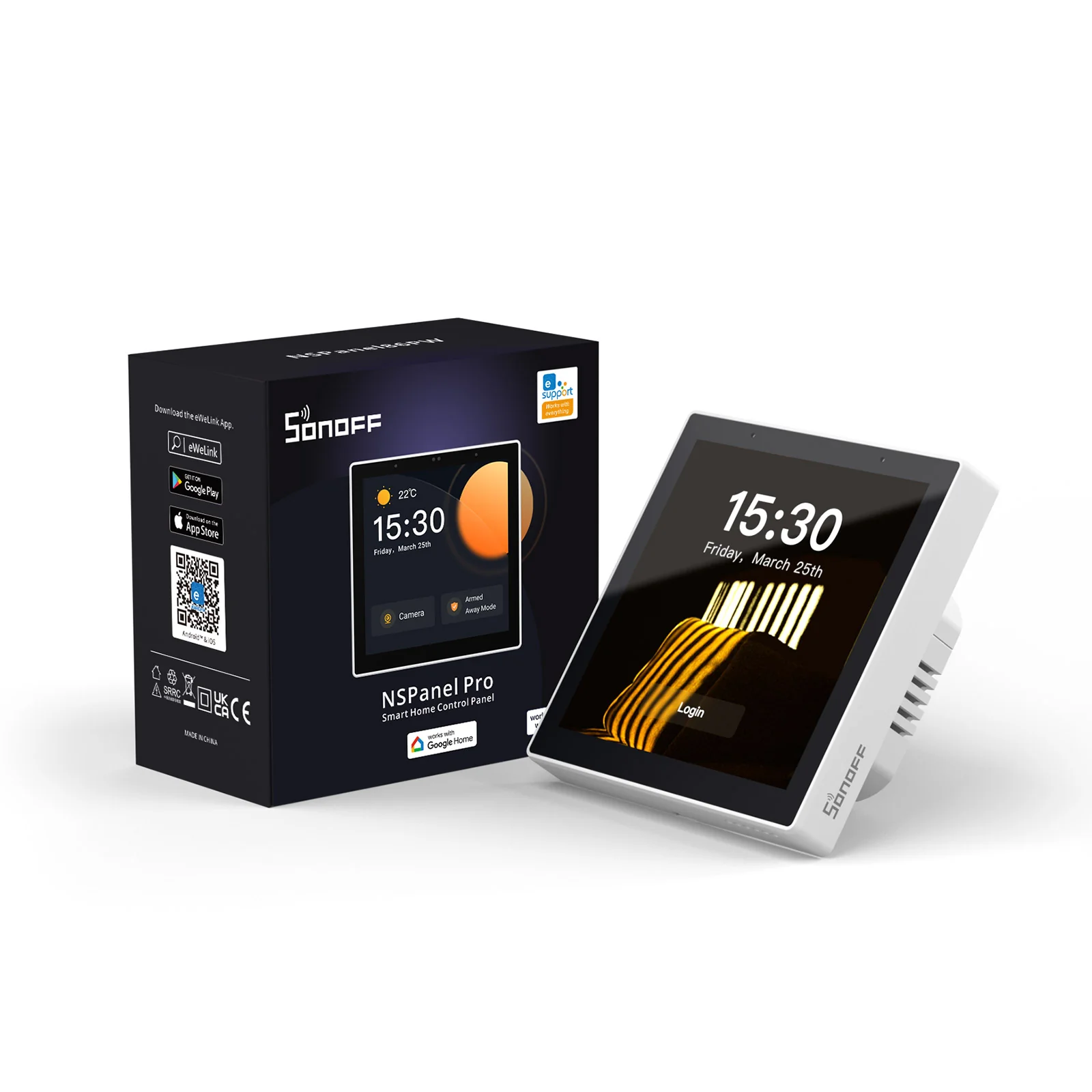

• Smart home control panel
• Screw x 2
• Quick guide

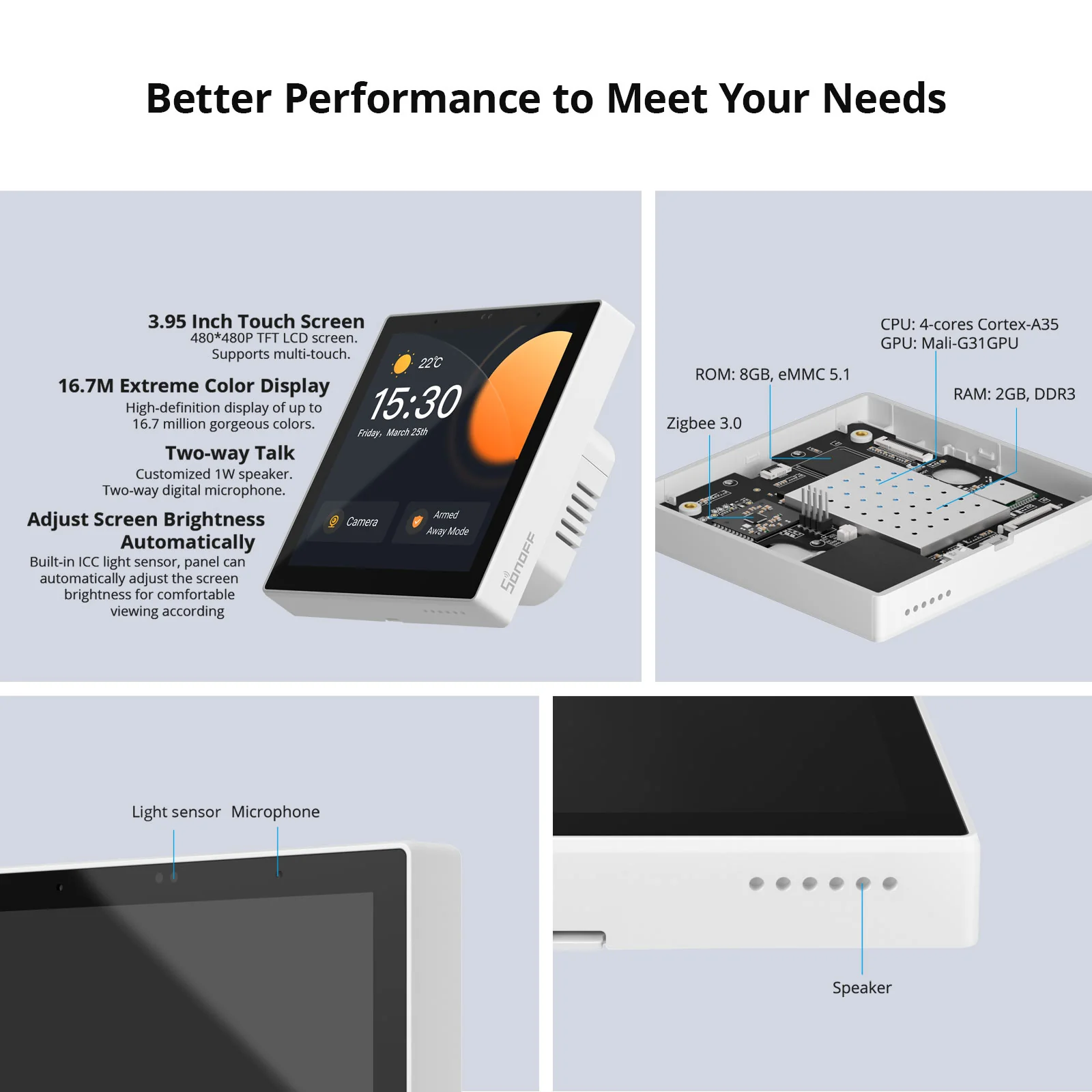

Tech Specs

• Screen size: 3.95" (Capacitive Touch Panel)
• Screen resolution: 480 x 480
• Input voltage: 100-240V AC 50/60Hz
• CPU: Quad-core ARM Cortex-A35 CPU
• GPU: Mali-G31GPU
• Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Zigbee 3.0
• Working humidity: 5%~90% RH, non-condensing
• Working temperature: 0°C-40°C
• Casing: PC V0 + CRS + Tempered glass panel
• Certification: CE/FCC/ISED/RoHS
• Dimensions: 86x86x39.5mm

Resources

Check out the NSPanel Pro knowledge centre for technical details, compatibility, troubleshooting and setup tips.

Notes

• The most recent version of the firmware supports web shortcuts, meaning you can view your iHost or Home Assistant dashboards from the control panel (check out Tech Me Out's video).

What is Zigbee?

Zigbee is a wireless standard enabling low-power, secure connections between smart devices. Widely used in home automation for devices like thermostats, sensors, and locks, its energy efficiency allows some devices to run for years on a single coin cell battery.

It has many benefits but the biggest one for us is its local nature, there's no cloud subscription or even internet connection required - everything stays within your home if you want it to. This makes it both incredible secure and also resilient to internet connection outages.

Many big brands have Zigbee supported devices including IKEA, Philips Hue, Tuya, and of course Sonoff. This means you can combine devices from different manufacturers into the same smart home setup ensuring you're not locked in to a single vendor - nice!

With an indoor range of 10–100 meters and extended outdoor coverage, Zigbee’s mesh networking ensures reliable communication, even if some devices go offline. Security features, including encryption and key protection, safeguard your smart home, keeping it secure and under your control.

Learn more about Zigbee on the official Zigbee website.
