Photo Interrupter - GP1A57HRJ00F

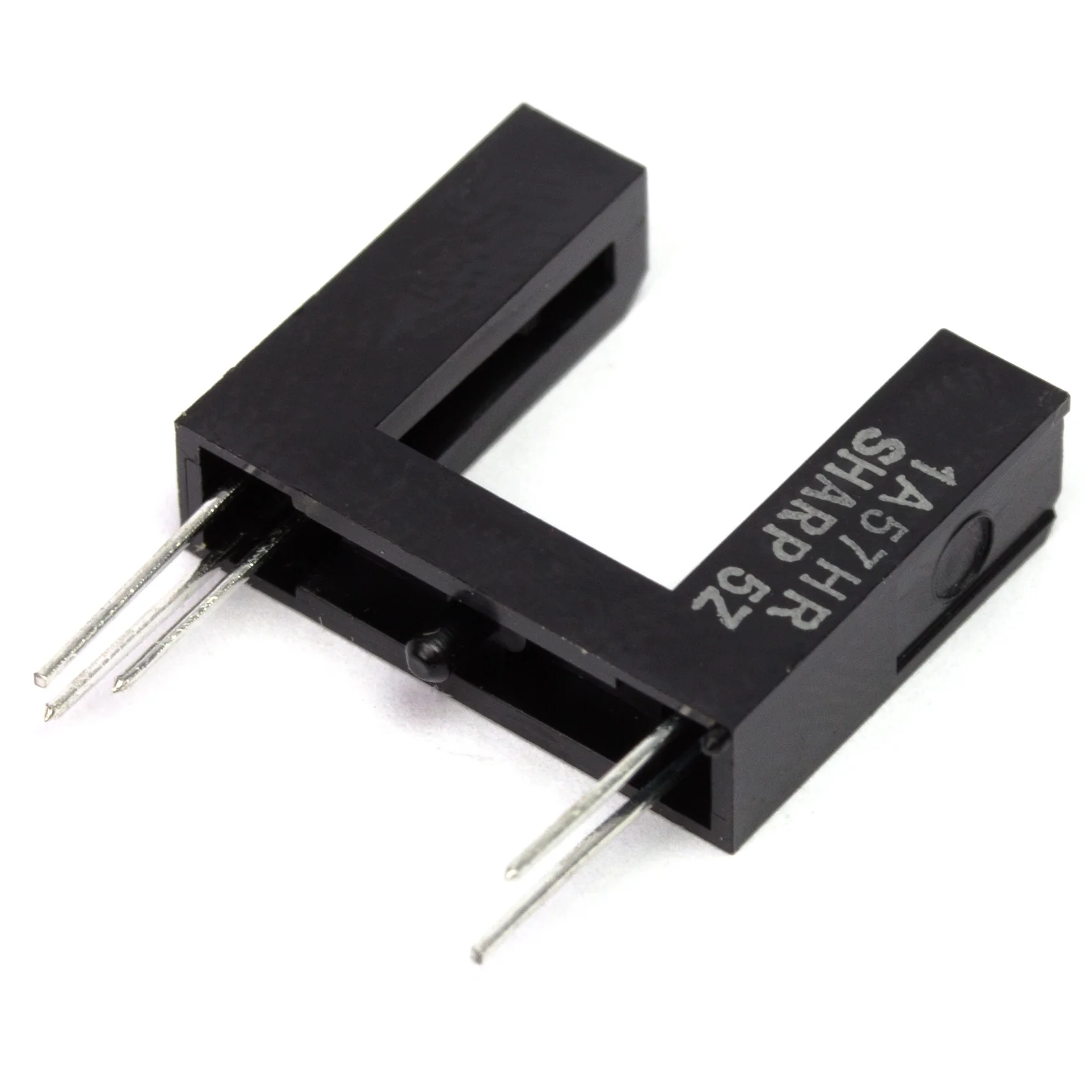

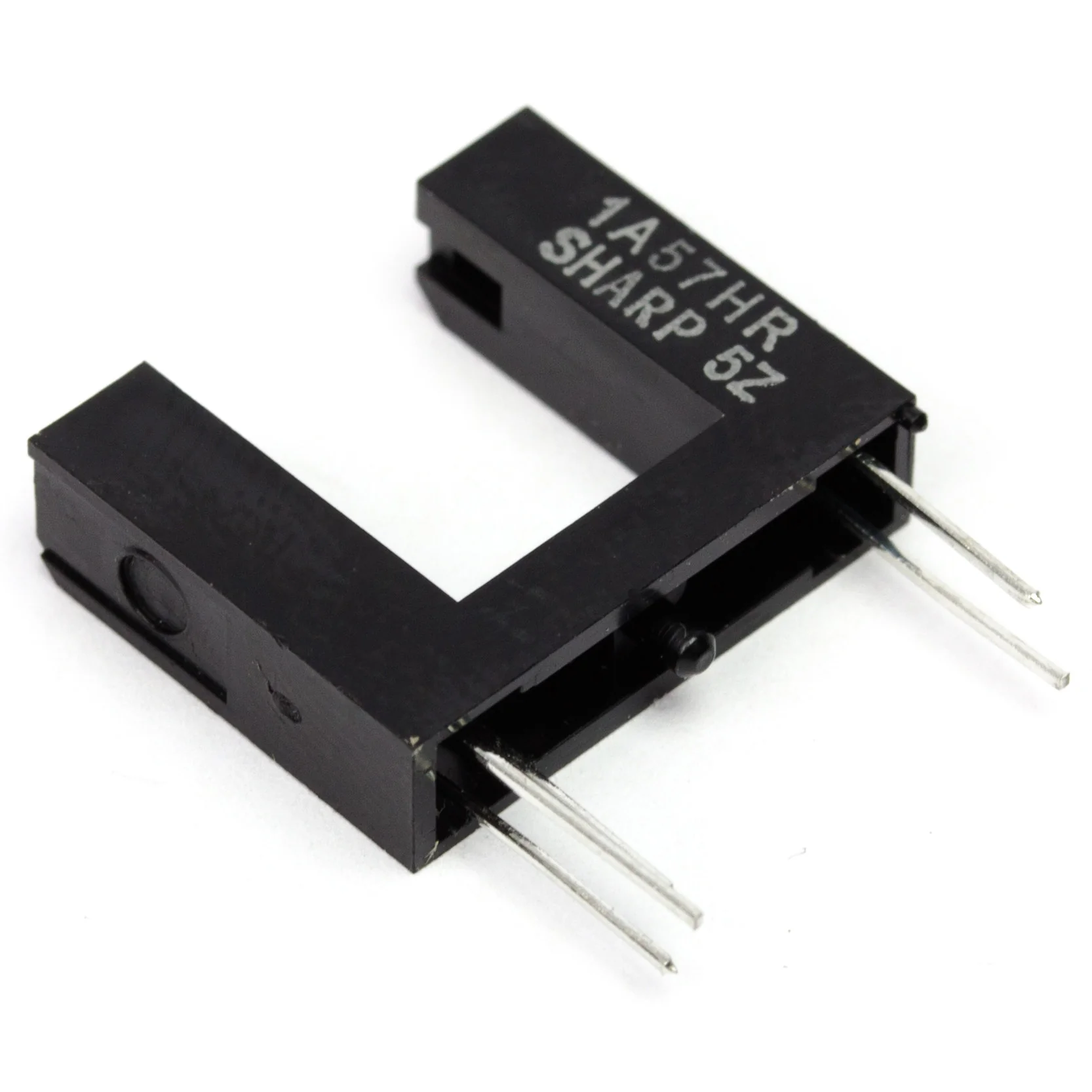

This sensor is composed of an infrared emitter on one upright and a shielded infrared detector on the other. By emitting a beam of infrared light from one upright to the other, the sensor can detect when an object passes between the uprights, breaking the beam.

Used for many applications including optical limit switches, pellet dispensing, general object detection, etc.

Slot Width	10 mm
Aperture Width	1.8 mm
If - Forward Current	7 mA
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Height	15.9 mm
Length	5 mm
Output Type	Pull Up, Buffer
Package/Case	18.6 mm x 15.2 mm x 5 mm
Sensing Method	Transmissive, Slotted
Width	18.6 mm
Number of Channels	1 Channel
Fall Time	0.05 us
High Level Output Voltage	4.9 V
Ir - Reverse Current	10 uA
Low Level Output Current	16 mA
Low Level Output Voltage	0.15 V
Operating Supply Voltage	4.5 V to 17 V
Pd - Power Dissipation	250 mW
Product Type	Optical Switches, Transmissive, Photo IC Output
Rise Time	0.1 us
Vf - Forward Voltage	1.14 V
Vr - Reverse Voltage	3 V
Unit Weight	1.169 g

Documents:

• Datasheet
