$5.01The Story
12V 300RPM, 37mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!

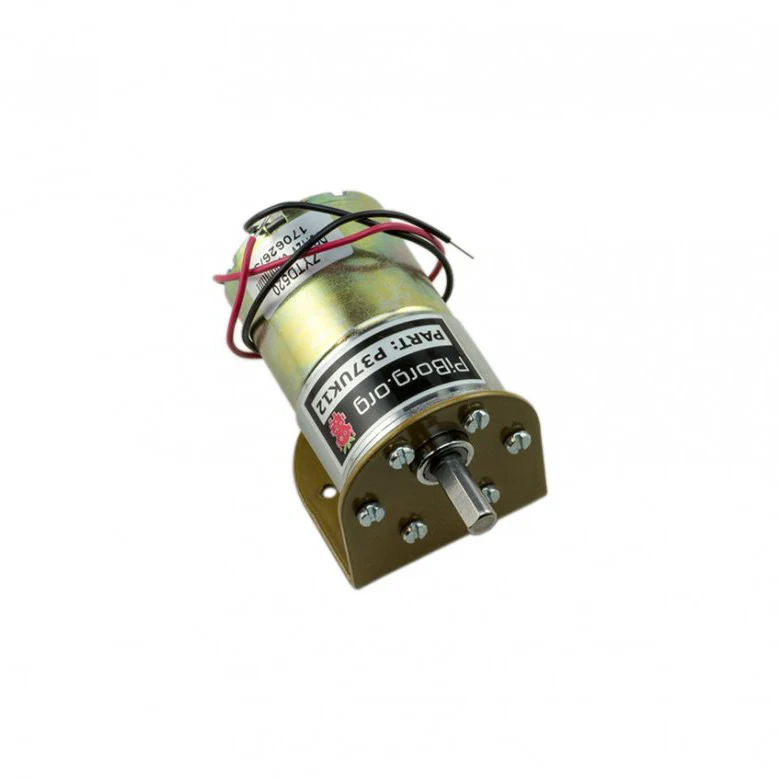

This motor features a 6mm diameter shaft so fits a 6mm hub, and can be mounted to a chassis using our Large Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.
These are the same motors that power theĀ MonsterBorg kits.
Technical Specification
- Part No. P37UK12
- Voltage: 12V
- Gearbox Reduction Ratio: 17.4
- No Load Speed (RPM): 300
- Rated Speed (RPM): 205
- Rated Torque (kg.cm): 1.02
- Rated Current (A): 0.716
- Stall Current (A): 2.7
- Shaft Diameter: 6mm
- Shaft Length: 14mm
- Motor Diameter: 37mm
- Motor Length:57mm
Downloads
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
12V 300RPM, 37mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!
This motor features a 6mm diameter shaft so fits a 6mm hub, and can be mounted to a chassis using our Large Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.
These are the same motors that power theĀ MonsterBorg kits.
Technical Specification
- Part No. P37UK12
- Voltage: 12V
- Gearbox Reduction Ratio: 17.4
- No Load Speed (RPM): 300
- Rated Speed (RPM): 205
- Rated Torque (kg.cm): 1.02
- Rated Current (A): 0.716
- Stall Current (A): 2.7
- Shaft Diameter: 6mm
- Shaft Length: 14mm
- Motor Diameter: 37mm
- Motor Length:57mm
