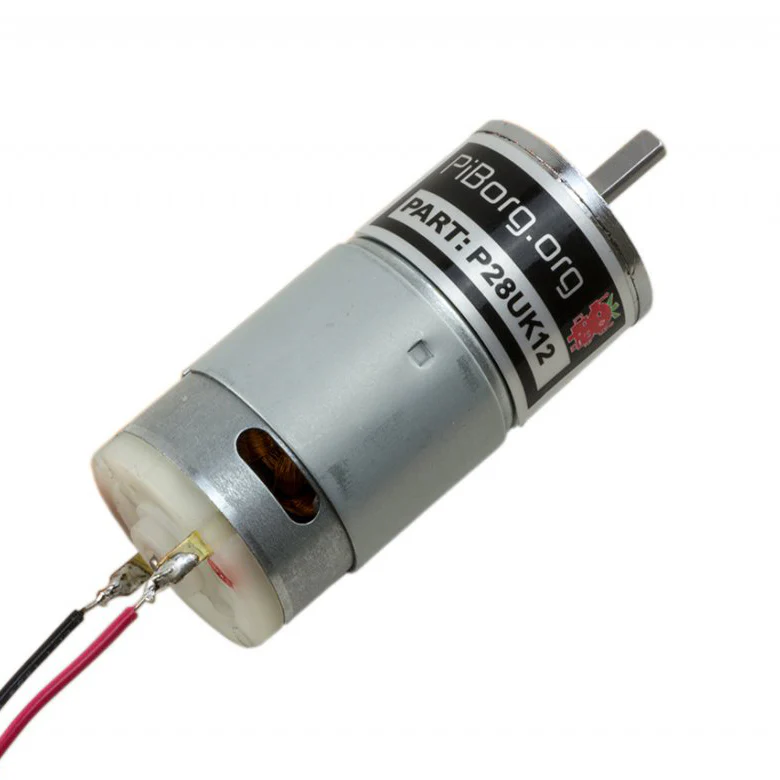

12V 590RPM, 28mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!

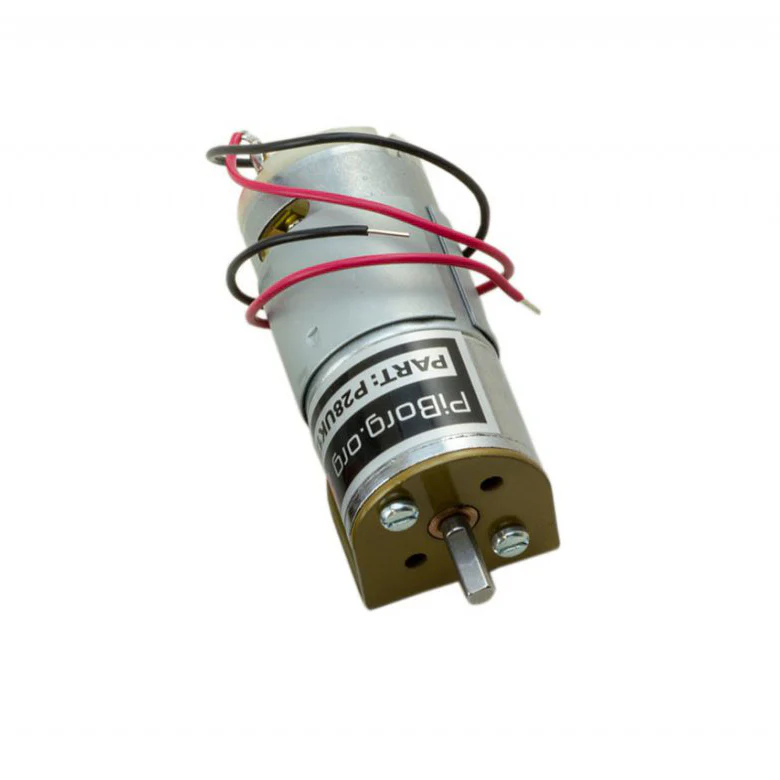

This motor features a 4mm diameter shaft so fits a 4mm hub, and can be mounted to a chassis using our Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.
Technical Specification
- Part No. P28UK12
- Voltage: 12V
- Gearbox Reduction Ratio: 11
- No Load Speed (RPM): 590
- Rated Speed (RPM): 480
- Rated Torque (kg.cm): 0.4
- Rated Current (A): 0.497
- Stall Current (A): 1.8
- Shaft Diameter: 4mm
- Shaft Length: 12mm
- Motor Diameter: 28mm
- Motor Length: 59mm
Downloads
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
12V 590RPM, 28mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!
This motor features a 4mm diameter shaft so fits a 4mm hub, and can be mounted to a chassis using our Advanced Motor Bracket Mount! Please Note. This purchase is for the motor only.
Technical Specification
- Part No. P28UK12
- Voltage: 12V
- Gearbox Reduction Ratio: 11
- No Load Speed (RPM): 590
- Rated Speed (RPM): 480
- Rated Torque (kg.cm): 0.4
- Rated Current (A): 0.497
- Stall Current (A): 1.8
- Shaft Diameter: 4mm
- Shaft Length: 12mm
- Motor Diameter: 28mm
- Motor Length: 59mm
