$3.30The Story

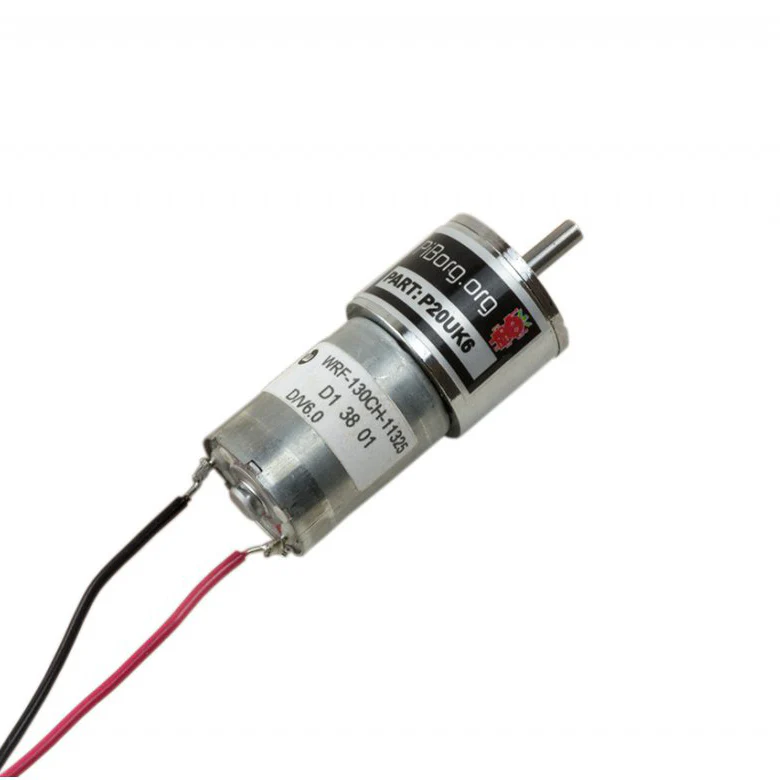

6V 180RPM, 20mm Diameter DC Motor! Built to PiBorg specification and specially made for awesome robots! PiBorg motors comes with wires pre-soldered, so perfect for connecting straight to your project!
This motor features a 3mm diameter shaft so fits a 3mm hub, and can be mounted to a chassis using theĀ Advanced Motor Bracket Mount!
Please Note. This purchase is for the motor only.
Technical Specification
- Part No. P20UK6
- Voltage: 6V
- Gearbox Reduction Ratio: 33
- No Load Speed (RPM): 180
- Rated Speed (RPM): 149
- Rated Torque (kg.cm): 0.13
- Rated Current (A): 0.087
- Stall Current (A): 0.5
- Shaft Diameter: 3mm
- Shaft Length: 8mm
- Motor Diameter: 20mm
- Motor Length:40mm
