The Story

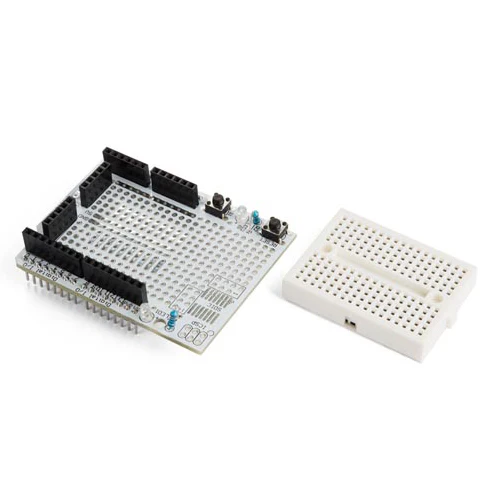

The ProtoShield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with the small solderless breadboard to quickly test circuit ideas without having to solder.
It has extra connections for all of the Arduino® I/O pins, and provides space to mount through-hole and surface mount.
Features
- 1.0 Arduino Pinout
- reset button
- free to use button + LED circuit
- ICSP connector location
- 14 pin SMD footprint
- 20 pin through-hole footprint
- 170 holes self-adhesive breadboard included
- compatible with: Leonardo, Uno, Mega, Classic
