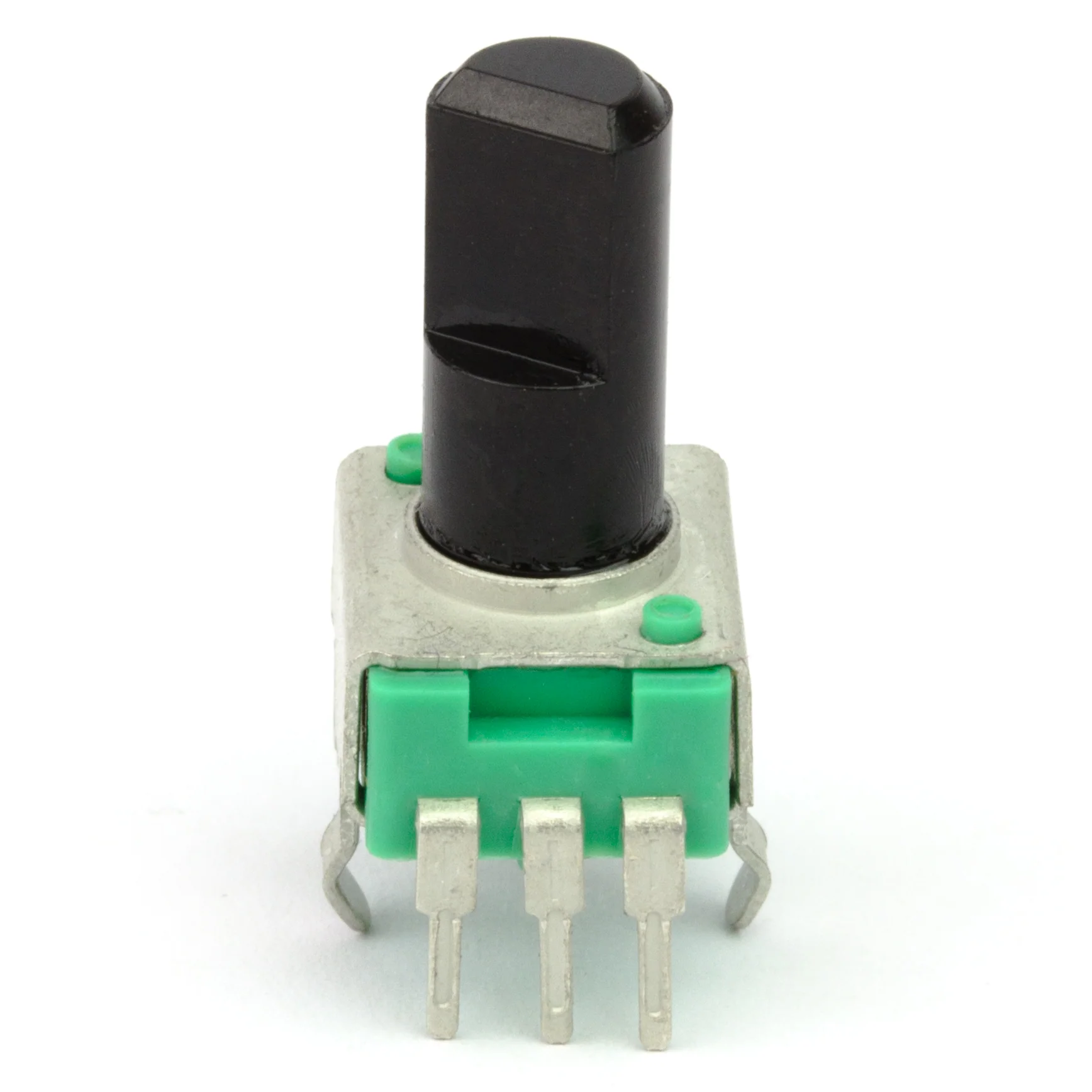

-70%Rotary Potentiometer—
$1.33
$0.40The Story
You'll find these rotary potentiometers in our Maker Essentials kit, but they're so useful we decided to offer them on their own!
Pair them with something like our Explorer HAT Pro or Explorer pHAT to read precise values from them.
- Total resistance: 1kΩ (NH00N2CB1K), 10kΩ (NH00N2CB10K) or 100kΩ (NH00N2CB100K)
- Total resistance tolerance: ±20%
- Max. operating voltage: AC 50V / DC 20V
- Rated power: 0.05W
- Rotational noise: less than 100mV
- Insulation resistance: more than 100MΩ at DC 250V
- Total rotational angle: 280° ±10°
- Linear resistance taper (1B)
- Datasheet
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
You'll find these rotary potentiometers in our Maker Essentials kit, but they're so useful we decided to offer them on their own!
Pair them with something like our Explorer HAT Pro or Explorer pHAT to read precise values from them.
- Total resistance: 1kΩ (NH00N2CB1K), 10kΩ (NH00N2CB10K) or 100kΩ (NH00N2CB100K)
- Total resistance tolerance: ±20%
- Max. operating voltage: AC 50V / DC 20V
- Rated power: 0.05W
- Rotational noise: less than 100mV
- Insulation resistance: more than 100MΩ at DC 250V
- Total rotational angle: 280° ±10°
- Linear resistance taper (1B)
- Datasheet
