Screw Terminal Block: 5 mm Pitch (4-Pack)

These screw terminal blocks have a pitch of 5 mm (0.197″).

Each block has terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A (UL) and ship in packs of four.

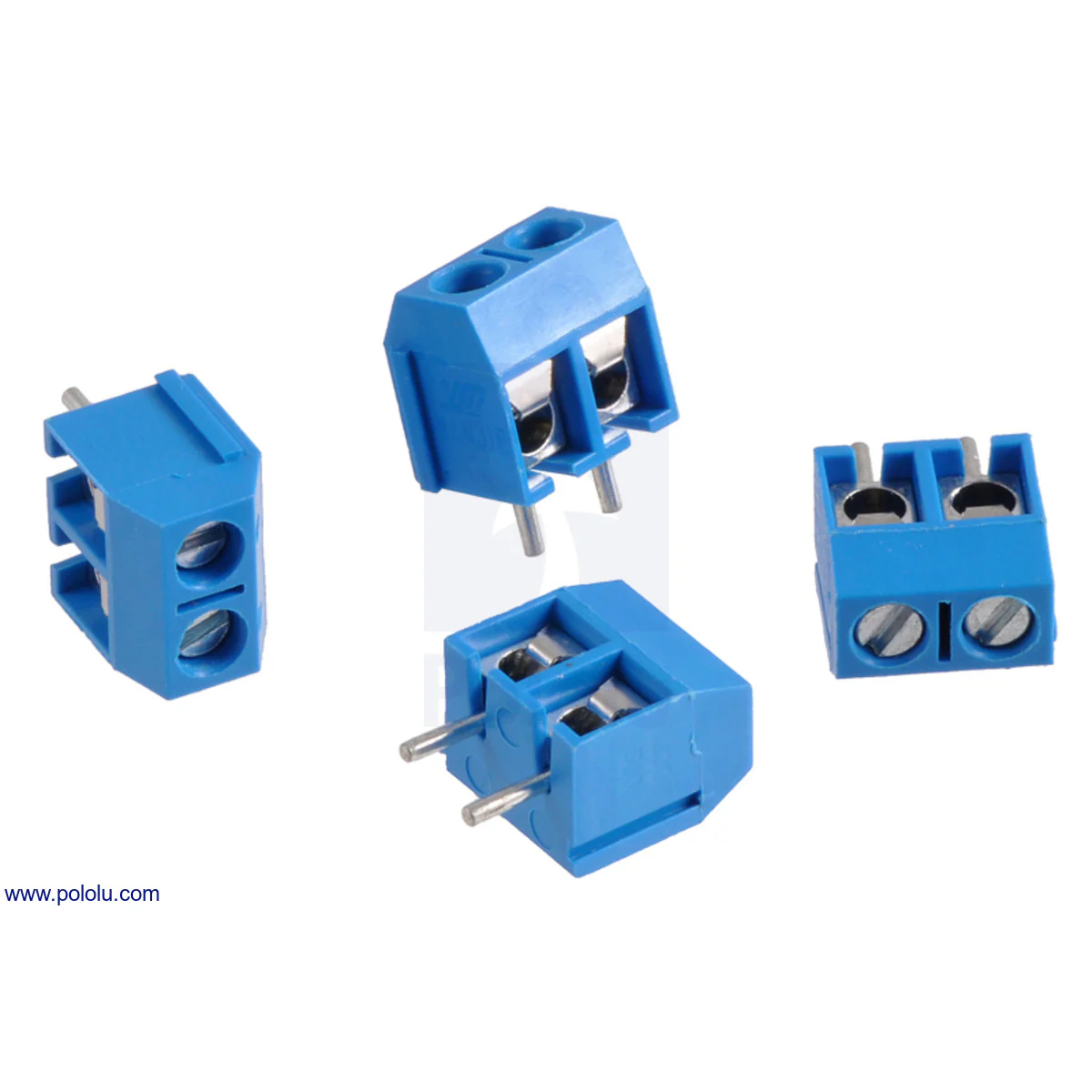

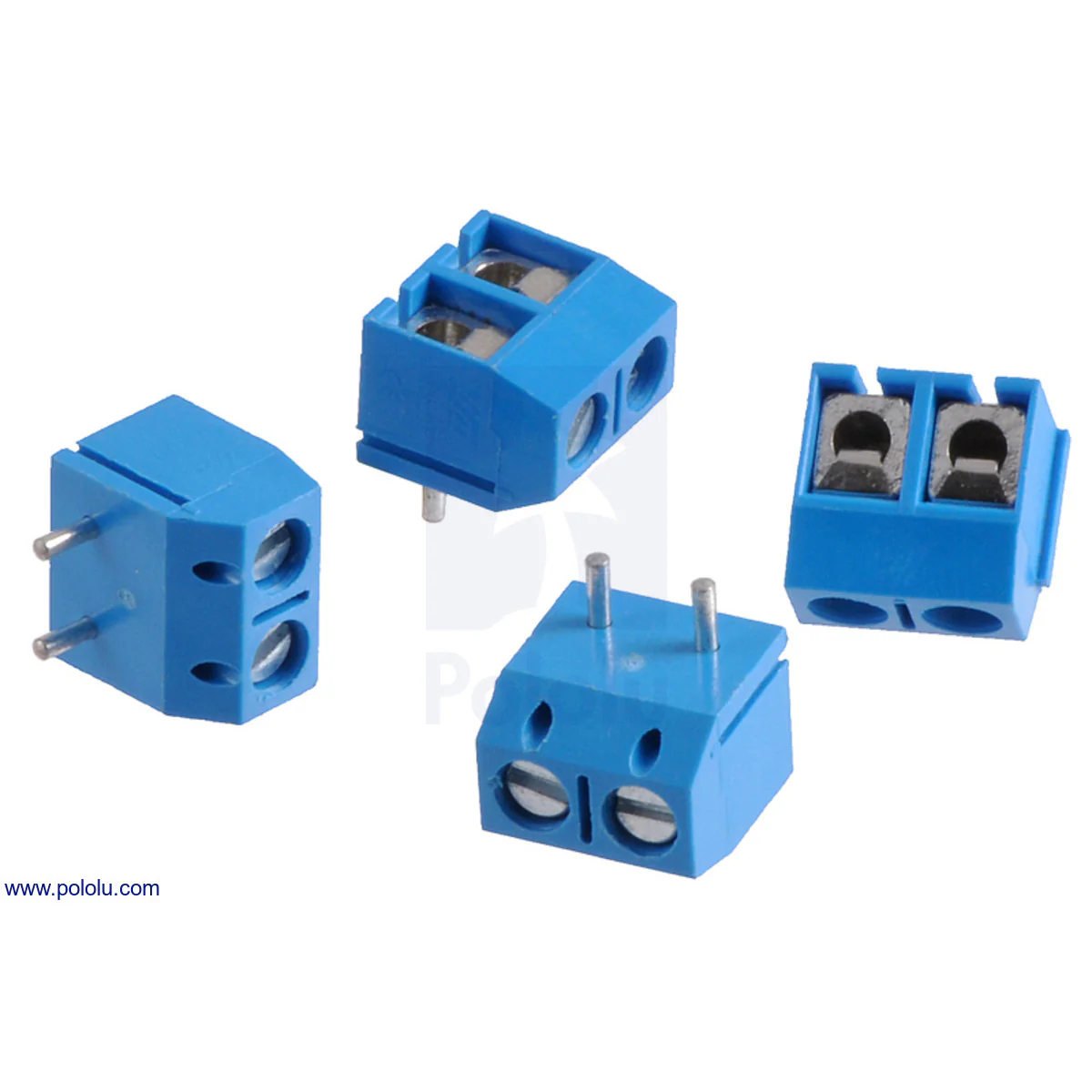

These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 5 mm.

Specifications

• Pins: 3
• Spacing: 5 mm
• Wire gauge: 22-14 AWG
• Current rating: 16 A¹
• Voltage rating: 250 V¹
• Contact resistance: 20 mΩ
• Wire strip length: 5 mm
• Terminal type: screw

¹UL rating
