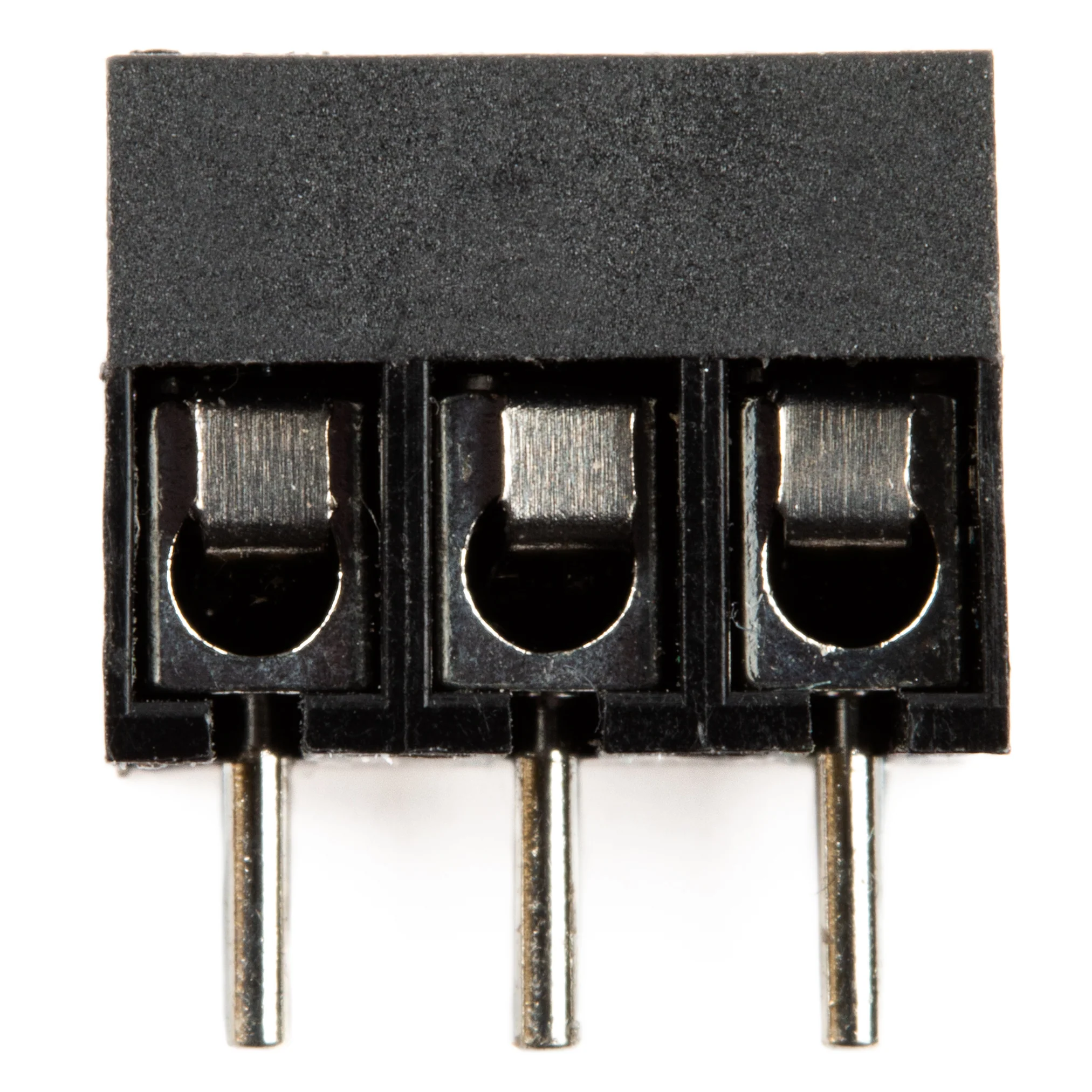

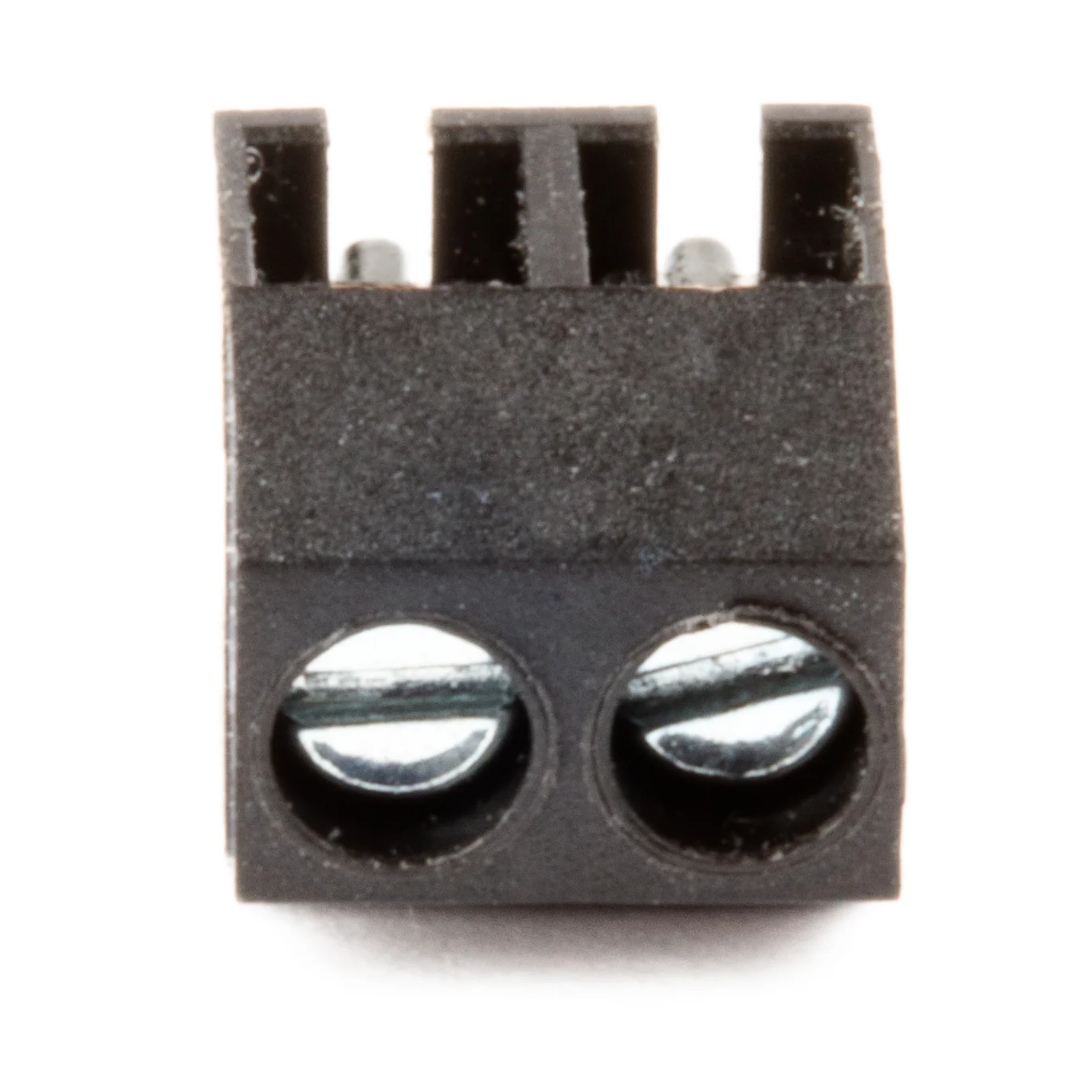

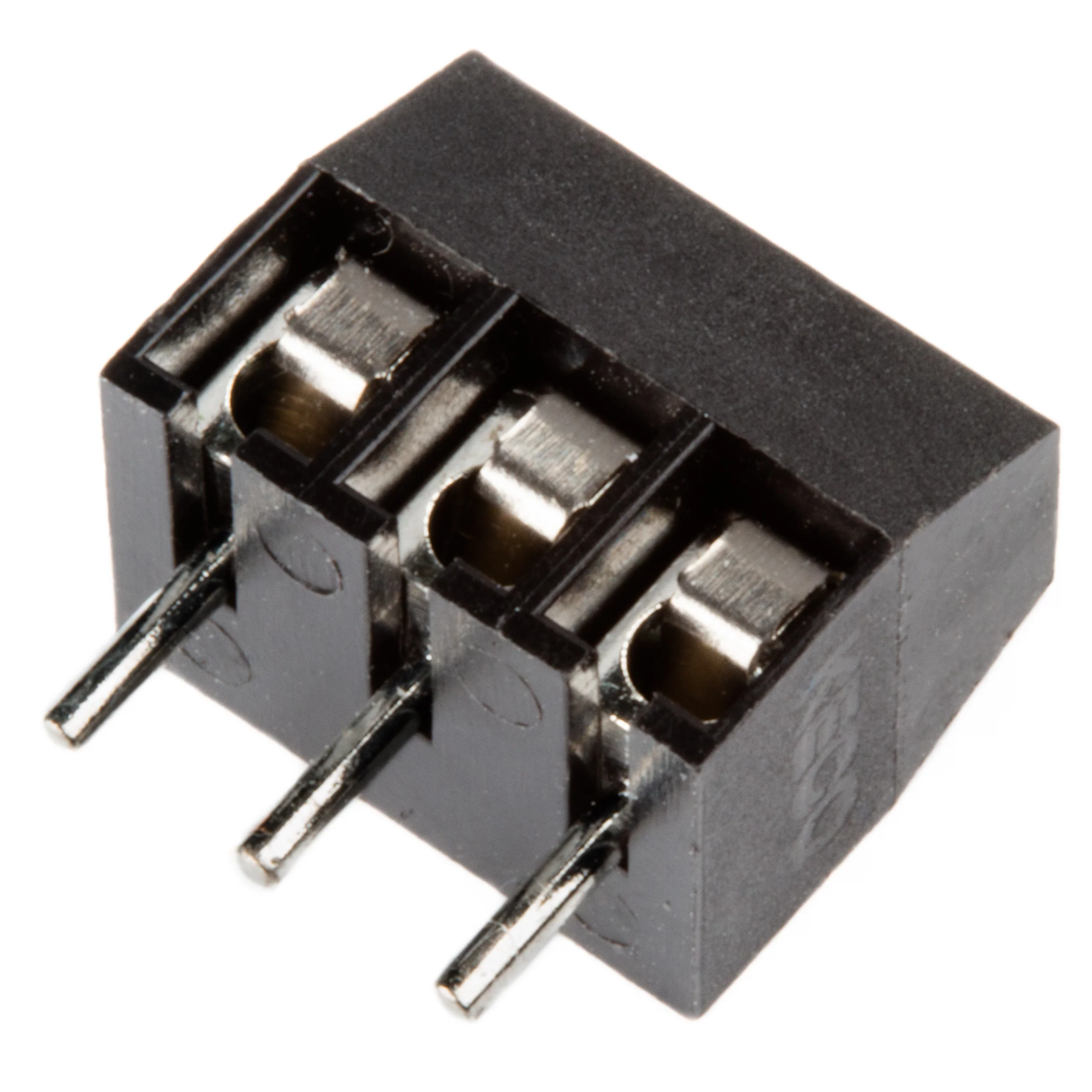

3.5mm Screw Terminal High-Temperature (pack of 10)

Screw terminals with a 3.5mm pitch

We have these screw terminals made custom for us from a high-temperature plastic that is designed specifically to survive temperatures inside a reflow oven. They are ideal for the professional and the hobbyist alike.

As well as being suitable to reflow the high-temperature plastic also holds up against hand soldering and rework helping to minimise damage to the connector when heat is applied.

Available in 2 and 3-pin configurations these terminals are smooth-sided and moulded to sit next to each other in your project, so if you need a larger terminal connection you can easily build that up.

Specifications

Pitch	3.5mm
Wire range	24-16AWG; 1.0mm2
Rated voltage	300V
Rated current	10A
Housing	DuPont FR52G30NH PPA with 30% glass fiber
Contact block	Brass, tin plated
Wire protector	Stainless Steel
Screw	M2, Steel, Zinc plated
Torque	2lb-in
