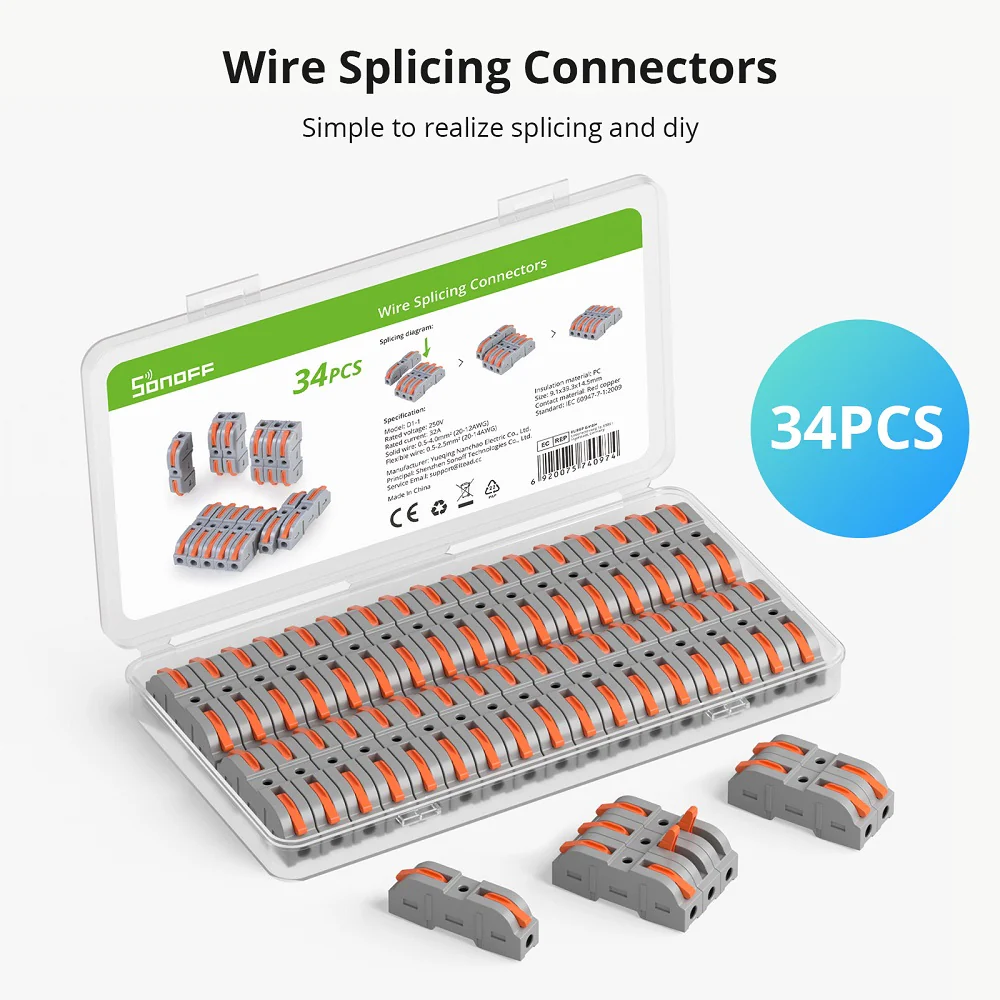

Sonoff Wire Splicing Connectors (34 pcs)

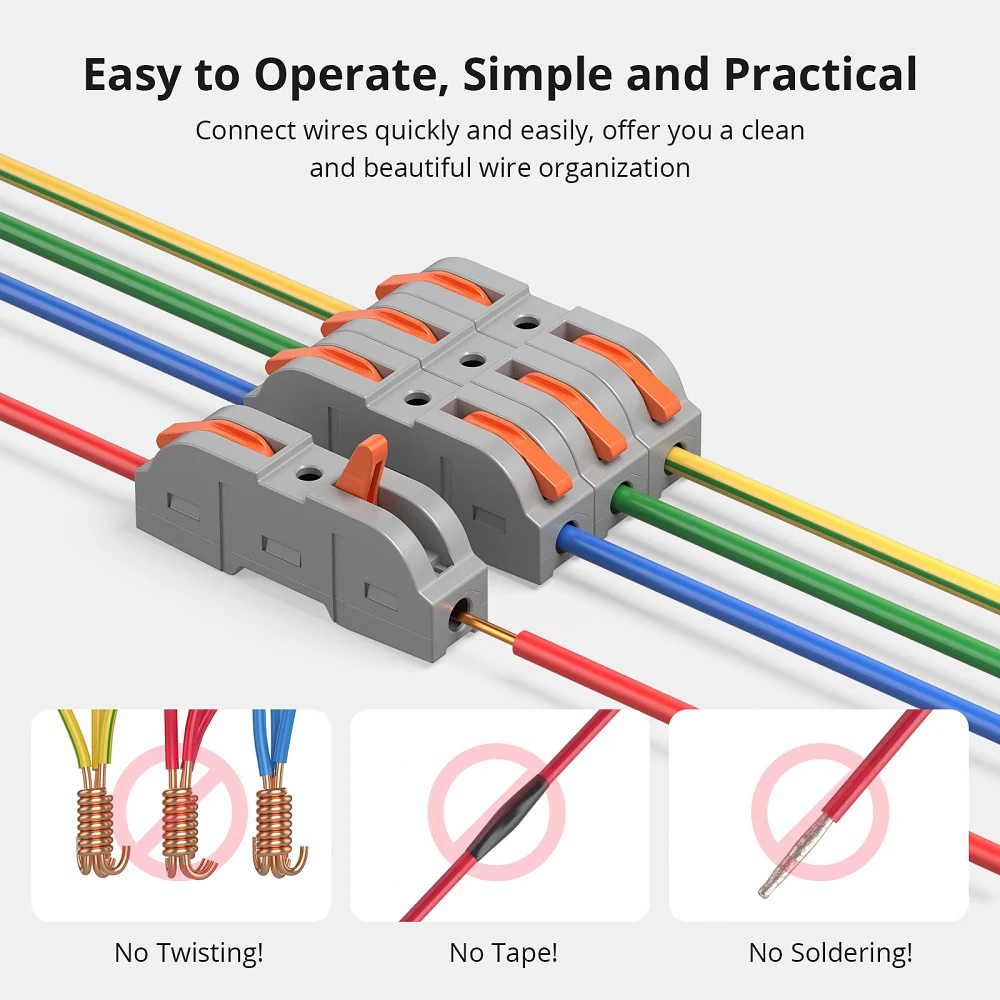

These clever wire splicing connectors make joining wires easier, faster, and far less fiddly than with traditional screw terminals or soldering.

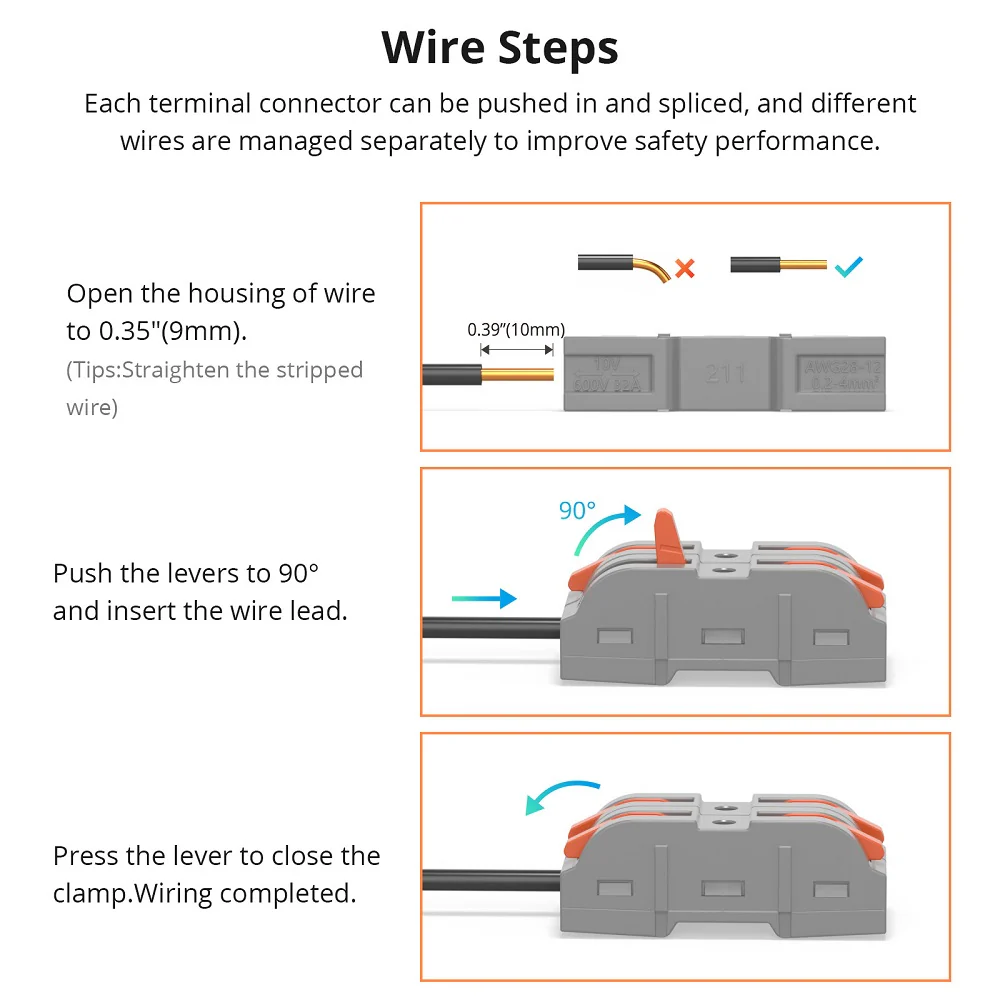

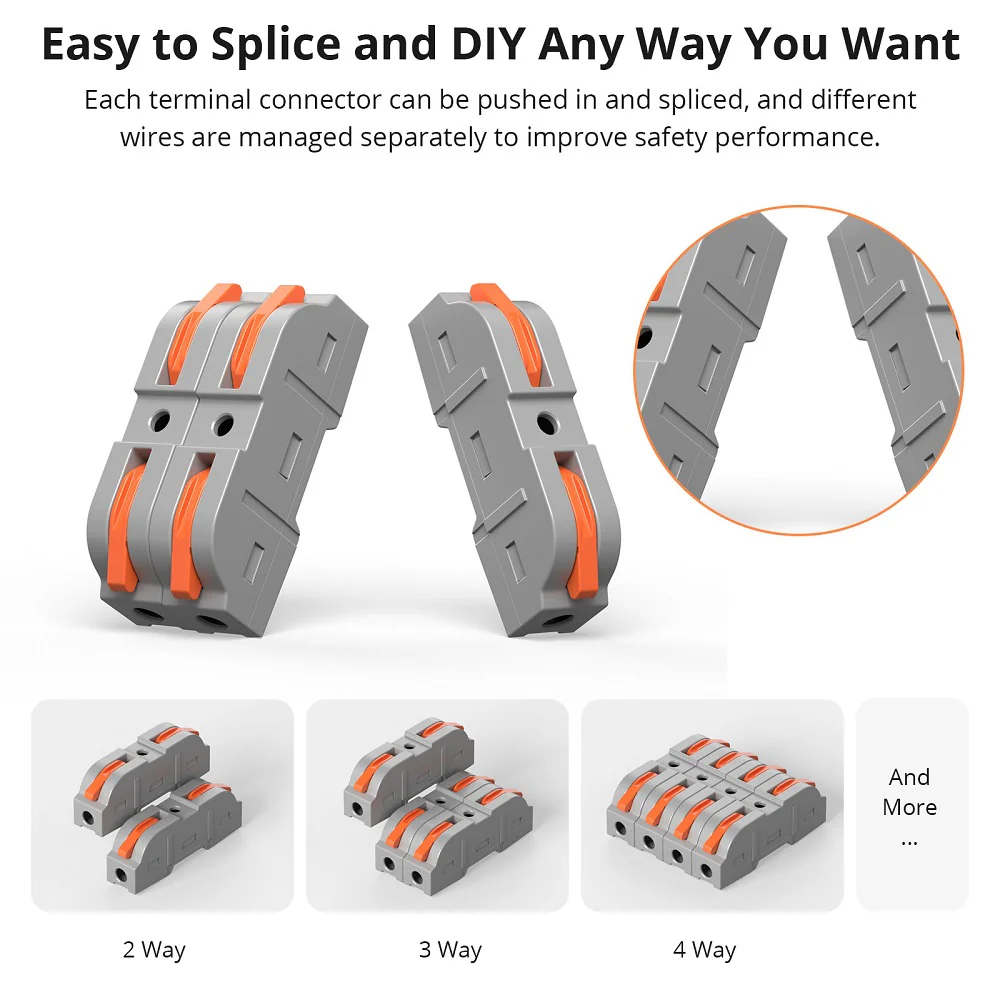

Simply lift the lever, insert the wire, and press it closed for a secure connection You can also join them onto each other to keep your wiring tidy.

Suitable for a wide range of applications, these connectors work with both solid and stranded wire and are ideal for everything from household wiring and lighting to appliances, control panels, and automotive projects.

Specifications

• Model: D1-1
• Rated voltage: 250V
• Rated current: 32A
• Solid wire: 0.5 to 4 mm² (20–12 AWG)
• Flexible wire: 0.5 to 2.5 mm² (20–14 AWG)
• Insulation material: PC
• Contact material: Red copper
• Connector size: 9.1 x 39.3 x 14.5mm
• Package size: 165 x 87 x 17mm
