For the easiest way possible to measure twists, turn to this STEMMA potentiometer breakout (ha!).

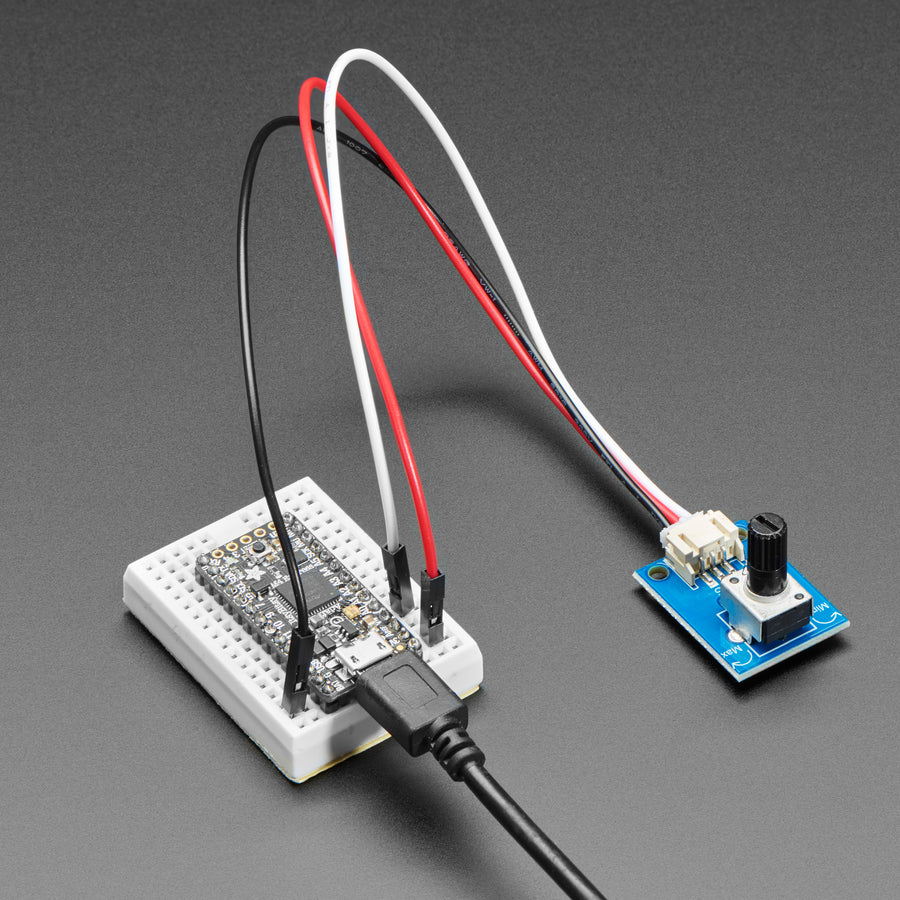

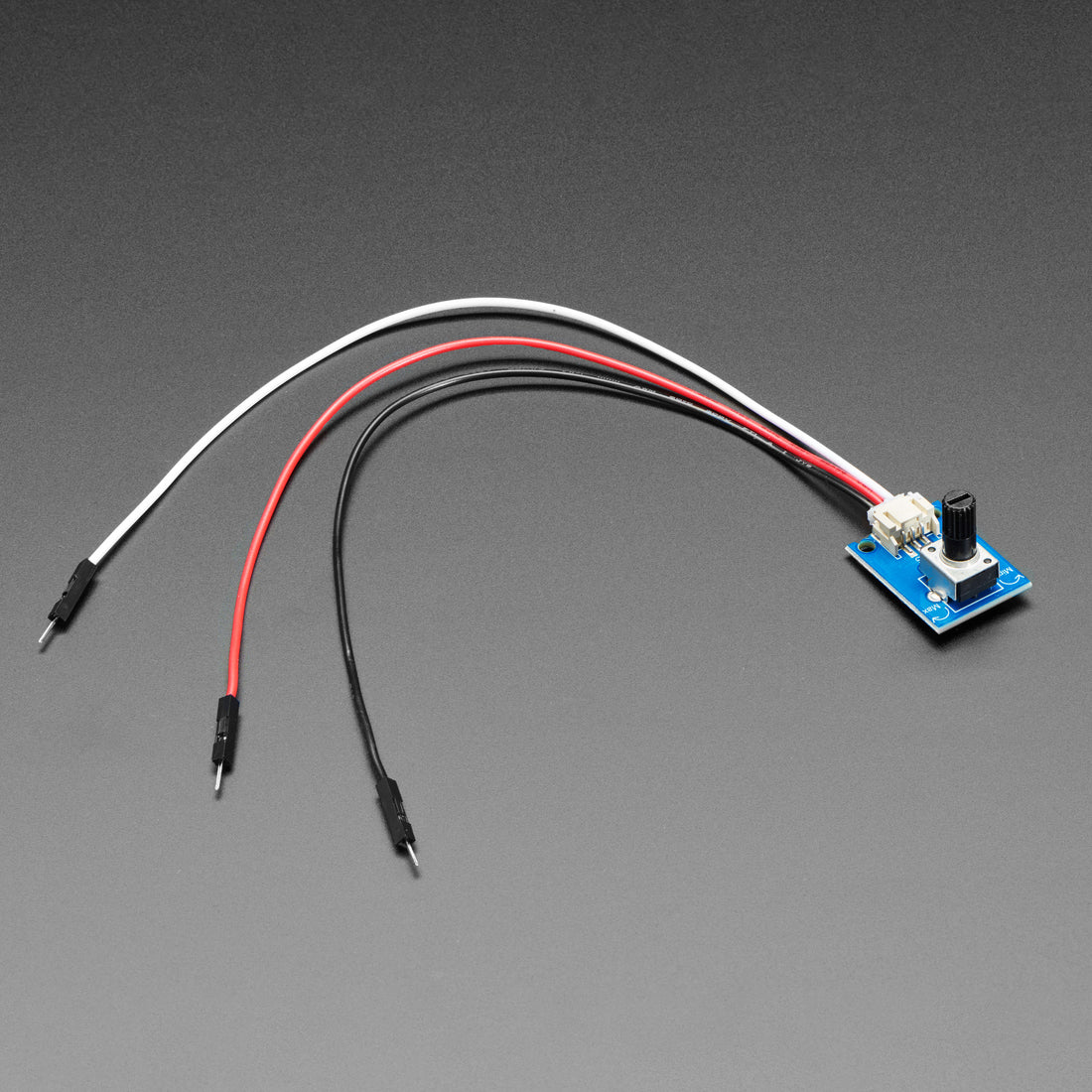

This plug-n-play pot comes with a JST-PH 2mm connector and a matching Β JST PH 3-Pin to Male Header Cables - 200mm, so wiring up is a cinch. Simply plug the cable in, then use the black wire to connect to your ground, white wire to the input/signal pin and the red wire to your power pin. The power pin voltage should match the voltage max of your analog input. So, if you're using a 5V Arduino or compatible, connect red to 5V. If you're using a 3V Feather board, tie red to 3V.
TECHNICAL DETAILS
- PCB Dimensions: 28mm x 21mm
- Potentiometer (L x W x H): 11.8mm x 10mm x 20mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
For the easiest way possible to measure twists, turn to this STEMMA potentiometer breakout (ha!).
This plug-n-play pot comes with a JST-PH 2mm connector and a matching Β JST PH 3-Pin to Male Header Cables - 200mm, so wiring up is a cinch. Simply plug the cable in, then use the black wire to connect to your ground, white wire to the input/signal pin and the red wire to your power pin. The power pin voltage should match the voltage max of your analog input. So, if you're using a 5V Arduino or compatible, connect red to 5V. If you're using a 3V Feather board, tie red to 3V.
TECHNICAL DETAILS
- PCB Dimensions: 28mm x 21mm
- Potentiometer (L x W x H): 11.8mm x 10mm x 20mm
