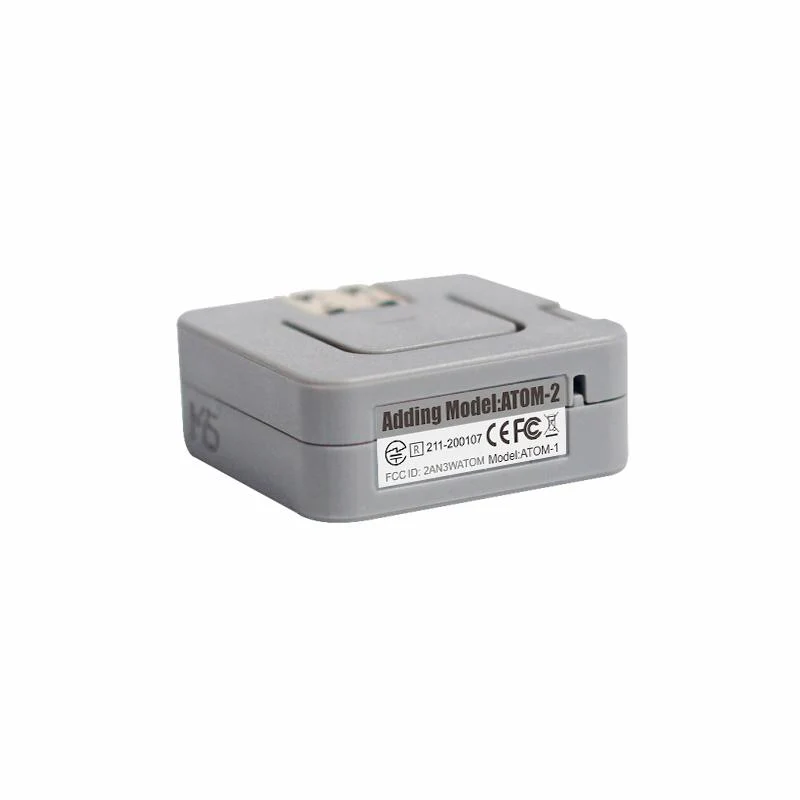

ATOM Lite ESP32 Development Kit

A smart, ESP32-PICO based development kit with built in WiFi and Bluetooth, an indicator LED and a button - brilliant for Internet of Things projects!

These little guys have become firm favourites for our IoT projects, as they're great value, easy to mount places and come with their own built in housing, so you don't need to make an enclosure to protect them. There's a handy pinout diagram on the back of the case, and they work really nicely with Home Assistant and ESPHome if you want to quickly and easily set up a network of sensors.

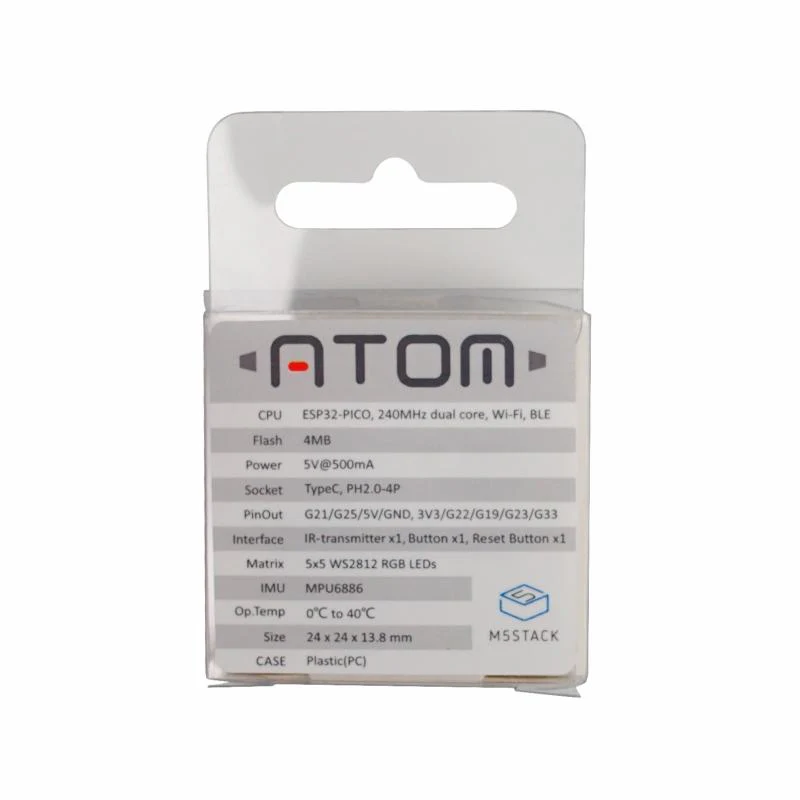

Because they're so tiny (24mm x 24mm), they'd be also be ideal for incorporating into embeddable or wearable projects where space is at a premium. If you'd like moar lights we also sell an ATOM with an inbuilt LED matrix, and we also stock a compatible plug and play battery!

For more information and for help getting started, click here. M5Stack boards come with a simple test sketch installed but no firmware - if you want to program it with UIFlow you will first need to flash it to your board with the M5Burner tool.

Product Features

• ESP32-PICO chip

• Onboard wifi and Bluetooth
• 4MB of integrated SPI flash memory
• RGB LED
• Programmable button
• Built-in Infra-red LED

• Six GPIO connectors for attaching to external sensors
• PH2.0 interface

• On-board USB-C interface for programming
• Program Platform: Arduino / UIFlow

Applications

• Internet of Things terminal controller
• IoT node
• Wearable peripherals

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash	4MB
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
PIN Port	G19, G21, G22, G23, G25, G33
RGB LED	WS2812B x 1
IR	Infrared transmission
Button	Custom button x 1
Antenna	2.4G 3D Antenna
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
Size	24 x 24 x 10 mm
Weight	12g
Case Material	Plastic ( PC )
