M5Stack AC Power Base

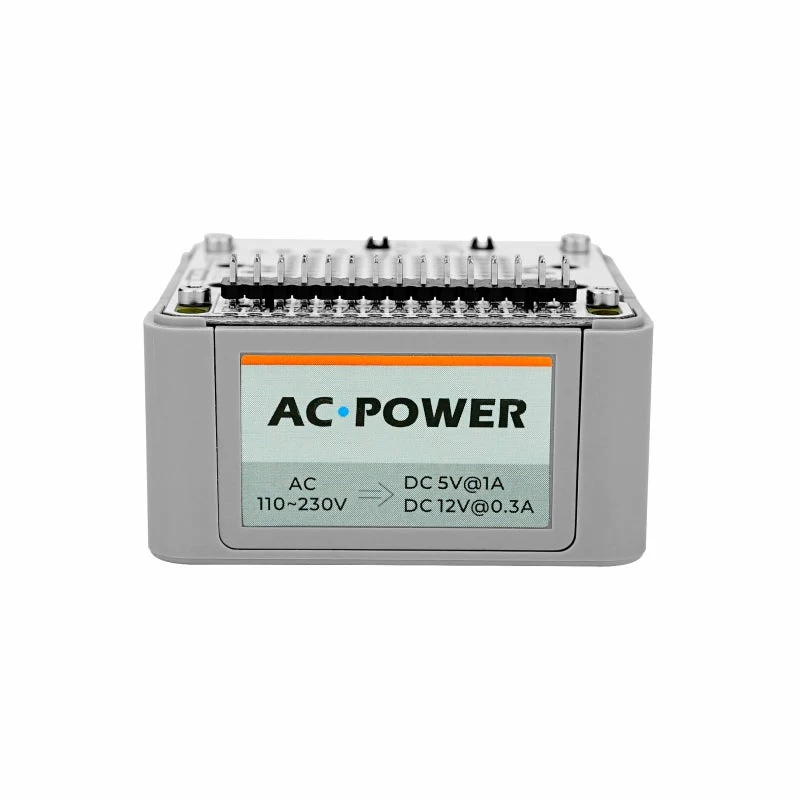

AC POWER BASE is a high-performance AC->DC Buck Converter Module, supporting AC 110 ~ 230V input.

Through the internal buck module, the Base offers a reliable output DC 5V and DC 12V, dual-channel DC power supply. With a built-in EMC and pulse attenuator, It provides excellent anti-interference and high stability.

In addition, the Base increases flexibility for any M5 main controllers' power supply, and it is ideally suited for a wide variety of fields including general electrical engineering applications.

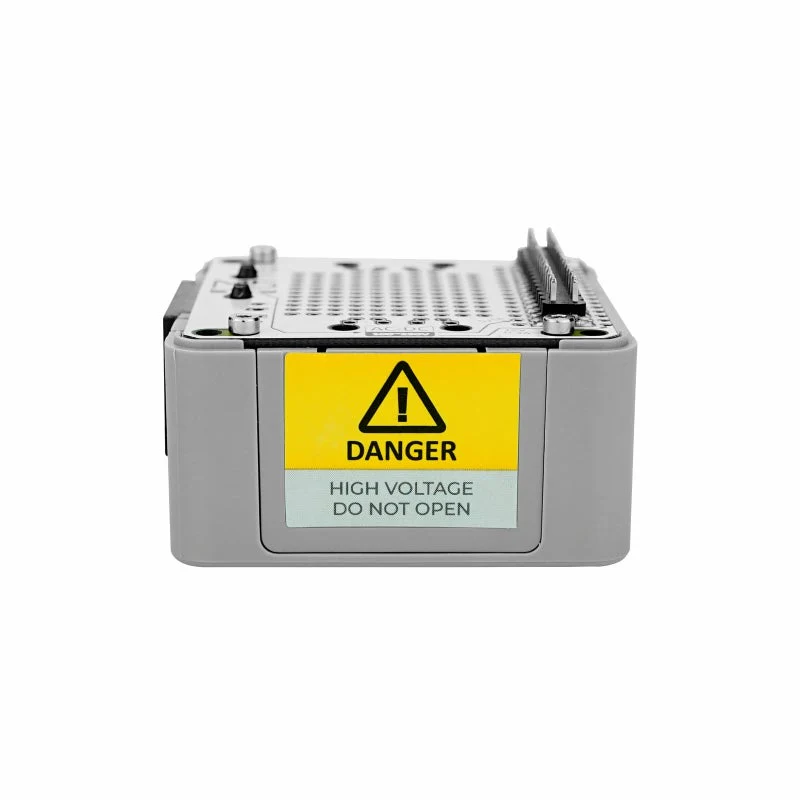

Note: Do not open up or disassemble the product for any reason; This product requires 110 ~ 230V AC input.

Features

• Input Voltage.
• AC 110 ~ 230V INPUT
• Output Voltage.
• DC 5V@1A OUPUT
• DC 12V@0.3A OUPUT
• Built-in fuse protection 250V/1A

Specifications

Resources	Parameter
Input voltage	AC 110 ~ 230V
Output voltage	5V@1A， 12V@0.3A
Voltage accuracy	±1%
Efficiency (Typ)	82%
AC interface specifications	AC-018E
Built-in fuse specifications	250V/1A
Power indicator	Red
Net weight	81g
Gross weight	107g
Product size	56 x 54 x 33mm
Packing size	85 x 67 x 47 mm
