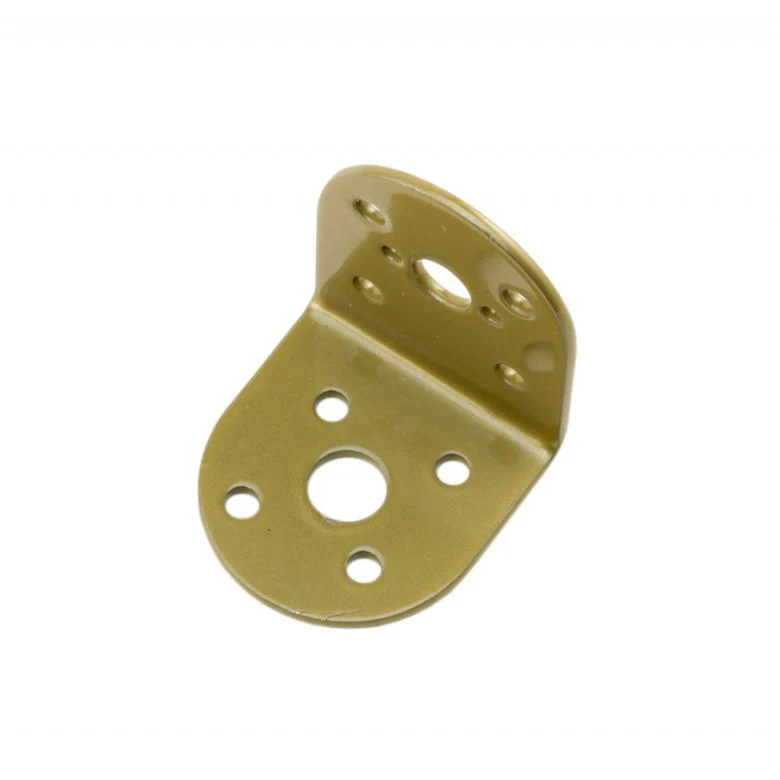

Advanced Motor Bracket Mount

Quality powder coated steel motor mount, made specially for PiBorg!

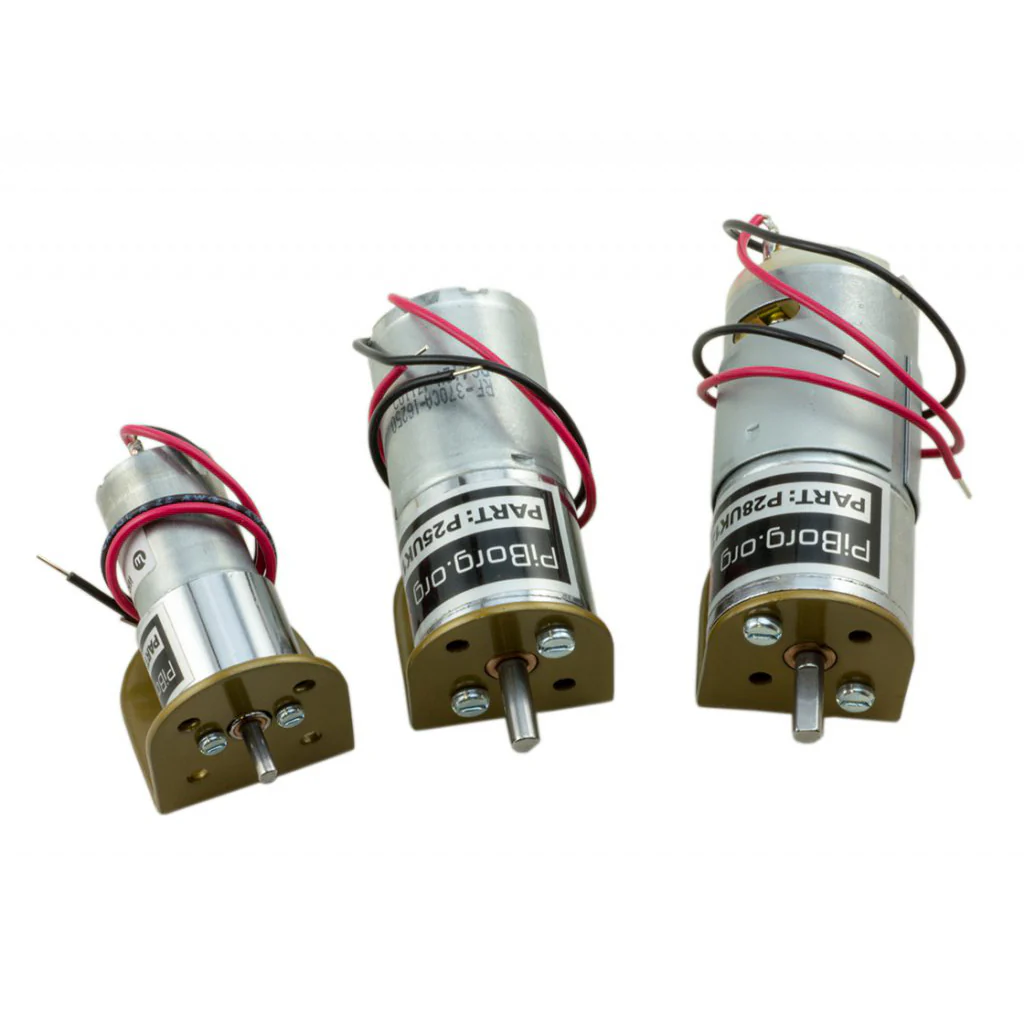

This advanced motor bracket is designed to accept PiBorg 20mm, 25mm and 28mm motors.

If you're looking to mount BIGGER motors, check out our large motor bracket, designed to mount the PiBorg 37mm and 42mm motors.

Please note, motors are sold separately.

Click here for dimensions

Features:

• Universal Motor Bracket - Mount PiBorg Motors to Chassis!
• Powder Coated 1.5mm Mild Steel

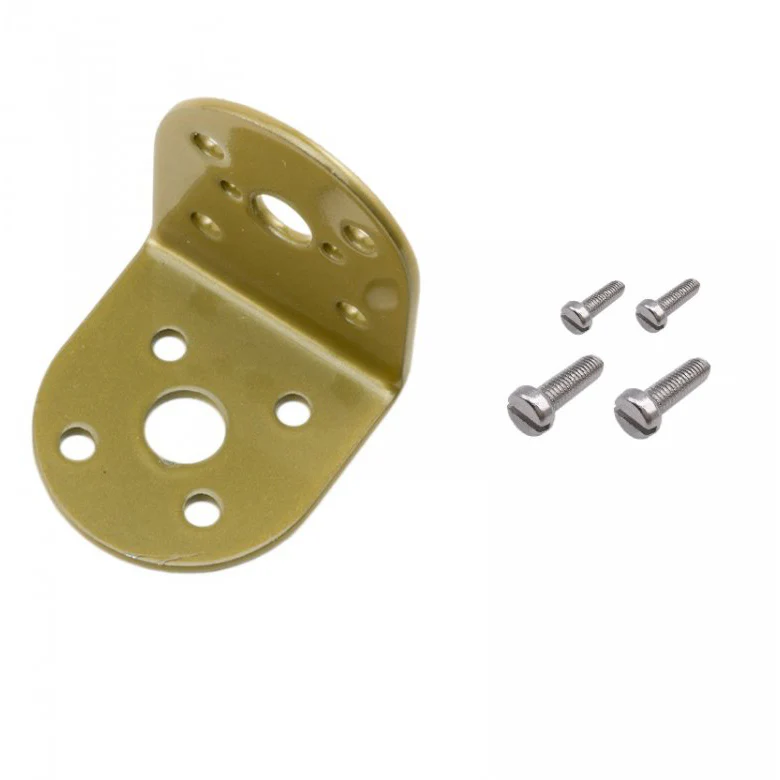

• Includes:
  • Motor Bracket
  • 2 x M3x6mm Bolts (For 25mm and 28mm Motors)
  • 2 x M2x10mm Bolts (For 20mm Motor)
• Compatible with Motor Shafts up to 6mm Diameter
• Design to Mount Motors with:
  • 11mm Spaced M2 Mounting Holes
  • 17mm Spaced M3 Mounting Holes
• 4 x M3 Holes for Mounting to Chassis (Hardware NOT Included); 17mm & 20mm Spacing
